Display
Brightness (ANSI lumens)500
Resolution1080P (1920x1080)
Native Aspect Ratio16:9
Contrast Ratio (FOFO)100,000:1
Display Color24-bit (16.7 million colors)
Light SourceLaser
Light Source Lifea. Normal 20000 hrs, b. ECO 30000 hrs
Optical

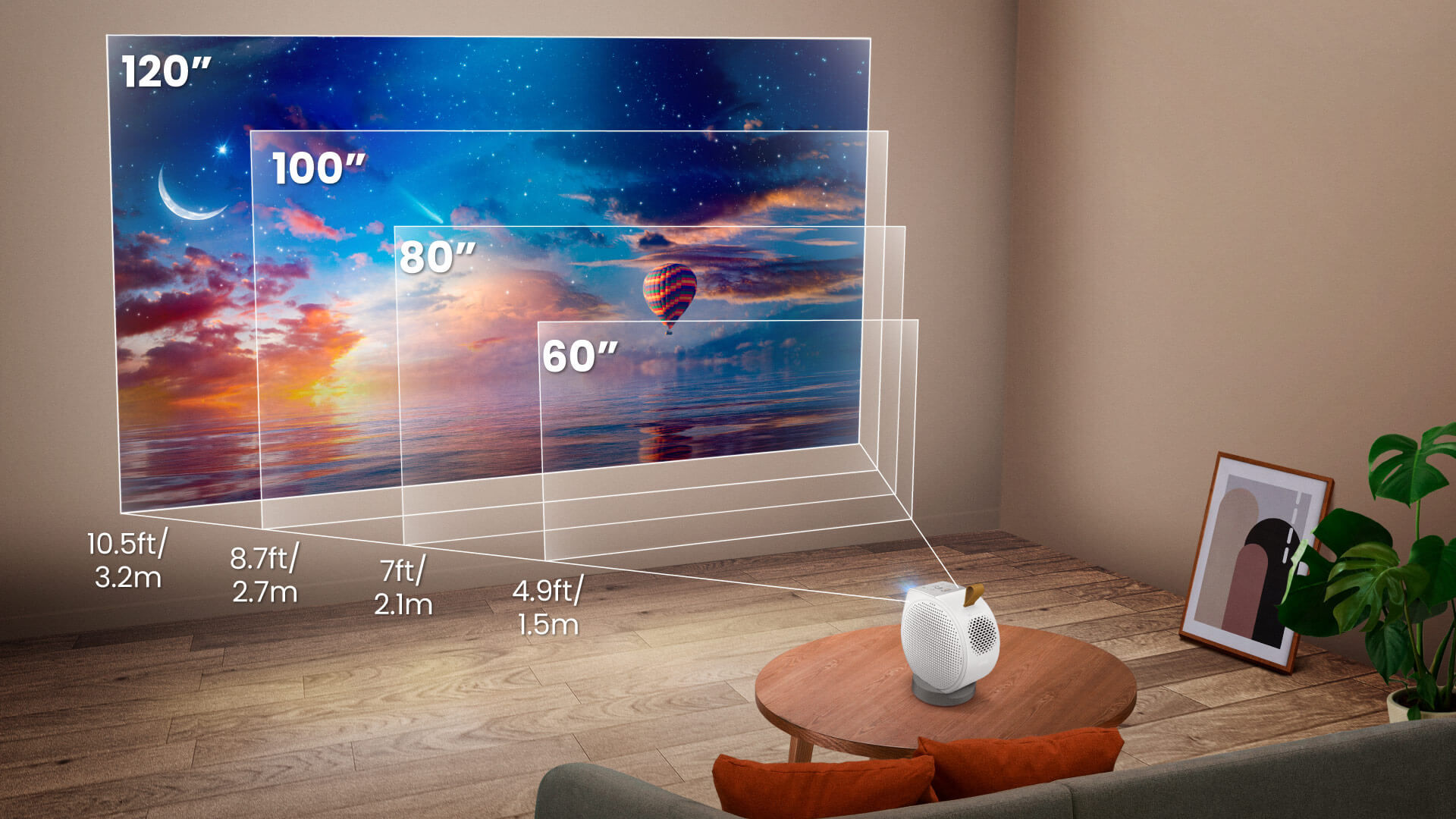

Throw Ratio1.2
Zoom RatioFixed
LensF/#=1.9; f=19.65mm
Projection Offset (Full-Height)100%
Keystone Adjustment2D, (Auto) Vertical ± 20 degrees, Horizontal ±30 degrees, Rotation ± 30 degrees(distance to the wall by projection direction: within 2M); 2D, (Manual) Vertical & Horizontal & Rotation ± 40 degrees
Rec. 709 Coverage92%
Picture ModesCustom, HDR Custom, HDR Night Shift, HDR Vibrant, HLG Custom, Night Shift, Vibrant, Bright, Cinema, Game, HDR Cinema, HDR Game, HLG
Compatibility
Input Lag22.4ms (1080P 60Hz)
Resolution SupportVGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency15K~135KHz
Vertical Scan Rate23~62Hz
I/O Interface
HDMI in(x1), HDMI-1 (2.0b/HDCP2.3)
USB Type A(x1), USB Type A-1 (2.0/Power Supply1.0A/Reader/FW Upgrade)
USB Type CDisplay Port/ PD in 20V-2.25A to 5A/ PD out 5V-2A, 9V-2A, 12V-1.5A, 15V1.2A/ Reader, (x1)

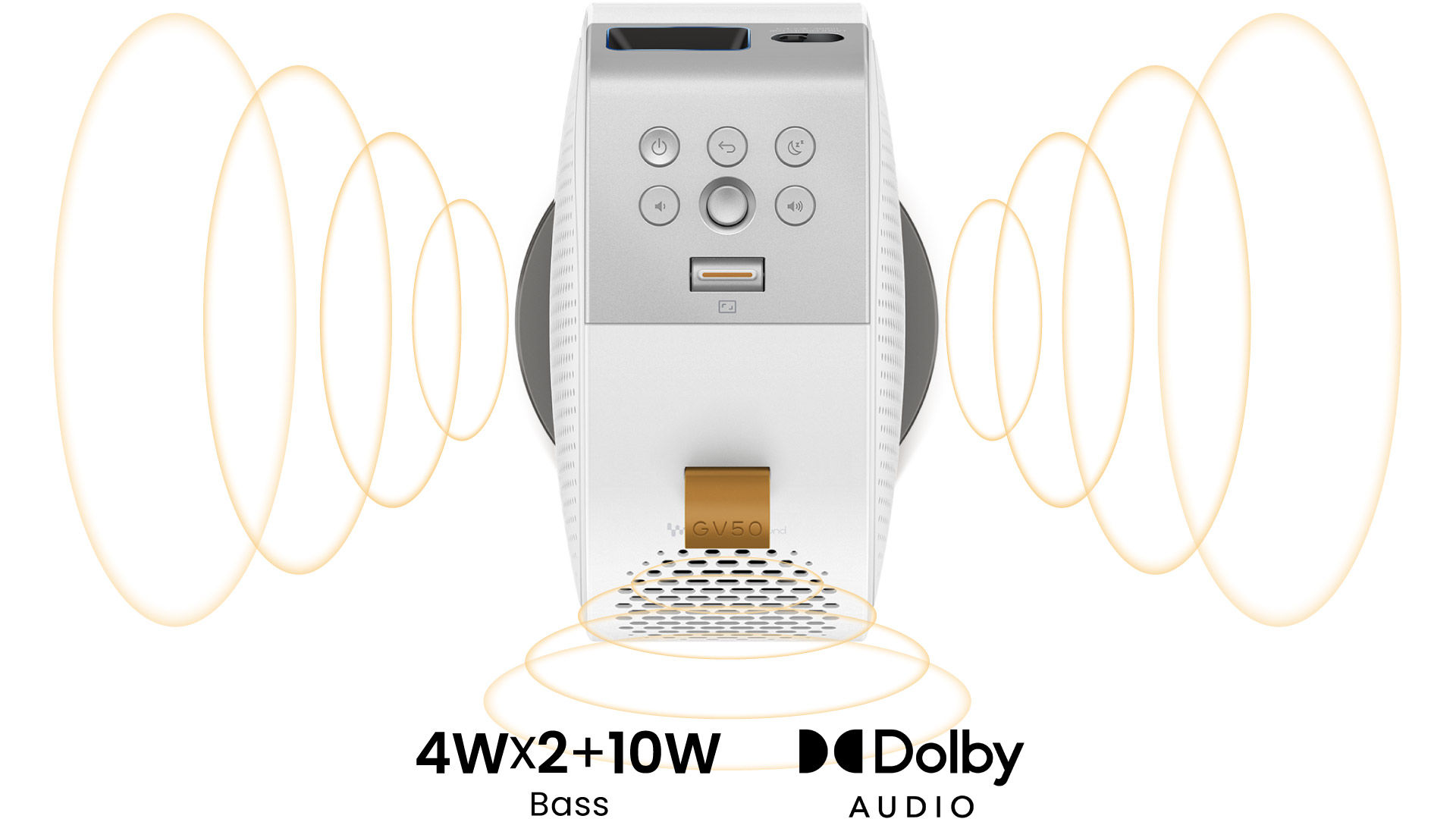

Audio
Speaker(x2), 4W
Woofer10W Chamber
Audio out (3.5mm Mini Jack)(x1)
HDMI Audio ReturnARC, 5.1 channel
Environment
Operating Temperature0~40℃
Power SupplyAC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)85W@100 ~ 240VAC
Stand-by Power Consumption<0.5W
Network Stand-by Power Consumption<2W
Acoustic Noise (Typ./Eco.)(dB)28dBA/26dBA
Accessories
Carry Bag(Optional)
Remote Control w/ BatteryRCI078
Power Cord (by region)x1 (1.8M)
Quick Start Guide(x1) 1L
Warranty Card (by region)Yes
Onscreen Display
LauncherSmart Home
Smart System
Built-in OSYes, Google TV (Android 11)
BluetoothYes, Bluetooth 5.0
Wi-Fi Standard802.11 a/b/g/n/ac (2.4G/5G)
Wireless ProjectionAirPlay, Google Cast
Preload AppsBenQ Projector Assistant/ Screen Sharing for iOS/ BenQ Notification/ BenQ User Dashboard/ BenQ Remote Control Updater/ VLC
Dimension & Weight
Dimensions (WxHxD) (mm)130.0 x 211.2 x 191.4
Net Weight (kg)2.1
Dimensions (WxHXD) (inch)5.12 x 8.31 x 7.54
Net Weight (lb)4.6
Projection System
Projection SystemDLP
