Panasonic
Panasonic PT-MZ882WEJ White LCD Laser Projector, 8,200 lumens, WUXGA Projector
Panasonic PT-MZ882WEJ White LCD Laser Projector, 8,200 lumens, WUXGA Projector
Couldn't load pickup availability
SKU:PT-MZ882WEJ
Delivery time 2 - 3 days *1
Question about the product
Question about the product
| Laser LCD, 8,200 lumens, WUXGA |
| Compact, lightweight housing with ultra-quiet operation (26 dB) |
| Large lens shift range and ultra-short throw lens for expanded installation options |
| Edge blending function for versatile room designs |
| High sustainability thanks to lower power consumption and washable eco-filter |
Flexible and cost-effective LCD laser projectors
PT-MZ882WEJ White
New LCD laser projectors with balanced color reproduction and brightness for seamless integration into corporate, education, and museum environments
Balanced image quality
Optimally coordinated brightness and color reproduction
The improved optical unit, with its harmonious interplay of high brightness and vibrant colors, ensures clear viewing even in brightly lit rooms. There's a suitable display mode for every content and projection surface, and dynamic optimization technologies continuously adjust the playback to the ambient conditions. This way, your audience can enjoy pleasant picture quality without having to turn off the room lights.
Flexible design for every space requirement
Unobtrusive housing
Thanks to their new, elegant housings, the projectors blend seamlessly into the room. The black recessed bases make the side and front panels appear slimmer. The unobtrusive design, quiet operation, and crisp content reproduction ensure that the projection (and not the projector) draws all eyes. The black models are ideal for discreet use in darker environments such as museums.
Reduced power consumption
The projectors consume around 20 percent less power than their predecessor models, so you can significantly improve your company's environmental footprint with each projector you add to your fleet.
Low-maintenance operation over 20,000 hours
Since the projector only requires maintenance after 20,000 hours of operation, you save time, money, and effort. The long-lasting laser light sources eliminate the need for annoying lamp disposal (which sometimes contain specific toxic substances) and reduce the need to keep inventory of consumables.
Less waste thanks to lamp-free design and eco-filter
Eco filters contain an electrostatic micro-cut filter that captures the finest dust particles. Combined with a dust-resistant projector housing, the Eco filter enables long-term use in dusty environments with less downtime. The filter needs to be replaced after approximately 20,000 hours. However, it is also easy to clean and reuse. And thanks to the projector's long-lasting laser light source, there's no need to worry about lamp disposal.
Specifications table
| Projector type | LCD projectors |
|---|---|
| LCD panel | |
| Panel Size | 19.3 mm (0.76 in) diagonal (16:10 aspect ratio) |
| Display Method | Transparent LCD panel (x3, R/G/8) |
| Drive Method | Active matrix |
| Pixels | 2,304,000 (1920 x 1200) pixels x3 |
| Light Source | Laser diodes |
| Light output 1, 2 | 8,200 lm |
| Time until light output declines to 50%*3 | 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO) |
| resolution | WUXGA (1920 x 1200 pixels) |
Specifications
Specifications
Projector type LCD projectors
LCD panel
Panel Size 19.3 mm (0.76 in) diagonal (16:10 aspect ratio)
Display Method Transparent LCD panel (x3, R/G/8)
Drive Method Active matrix
Pixels 2,304,000 (1920 x 1200) pixels x3
Light Source Laser diodes
Light output 1, 2 8,200 lm
Time until light output declines to
50%*3
20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Resolution WUXGA (1920 x 1200 pixels)
Contrast Ratio*2 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC
CONTRAST] is set to [1] or [2]. HDMI™ signal input)
Screen Size (Diagonal) 1.02-10.16 m (40-400 in), 1.52-10.16 m (60-400 in) with the ET-ELW22, 2.54-10.16 m (100-
400 in) with the ET-ELU20, 16:10 aspect ratio
Center-to-corner zone ratio*2 85%
Lens Powered zoom (throw ratio 1.61-2.76:1), powered focus F = 1.7-2.3, f = 26.8-45.5 mm (for
supplied lens; optional lenses also available)
Lens shift Vertical (From the origin
point of the lens mounter)
±67% (powered), ±60% (with ET-ELW22), ±50% (with ET-ELU20) (TBD)
Lens shift Horizontal (From the origin
point of the lens mounter)
±35% (powered), ±30% (with ET-ELW22), ±24% (with ET-ELU20) (TBD)
Keystone Correction Range Vertical: ±25 ° (±22 ° with ET-ELW21/ET-ELW22); (±25° with ET-ELW20/ET-ELT22/ET-ELT23):
(±5 ° with ET-ELU20), Horizontal: ±30 ° (±15 ° with ET-ELW21/ET-ELW22); (±30 ° with ET-
ELW20/ET-ELT22/ET-ELT23): (0° with ET-ELU20)
Installation ceiling/floor, front/rear, free 360-degree installation

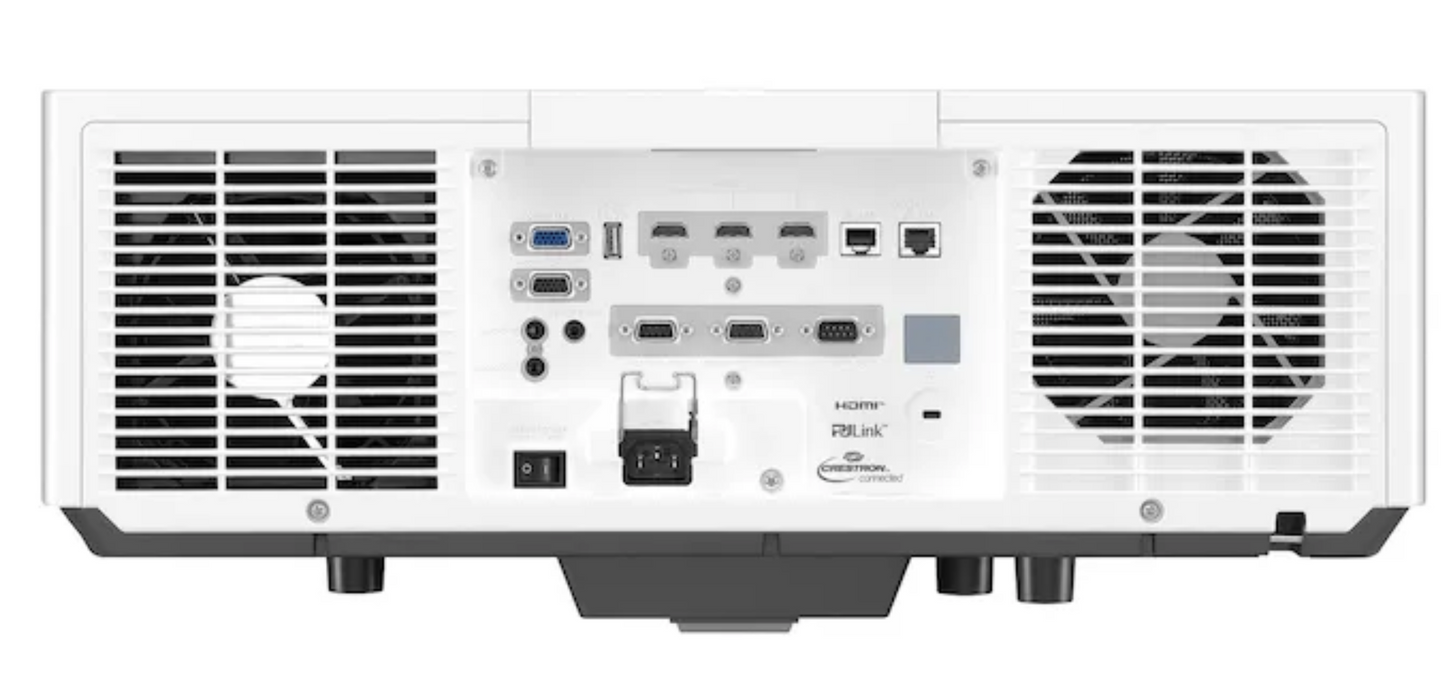

Terminals
HDMI™ IN HDMI™ x 3 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input4), CEC supported
Computer In D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Monitor Out D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
SERIAL/MULTI SYNC In D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)
MULTI SYNC OUT 0-sub 9-pin (male) x 1 for link control
Remote 1 In M3 stereo mini-jack x 1 for wired remote control
Remote 2 In 0-sub 9-pin (female) x 1 for external control (parallel)
Audio In M3 stereo mini jack x 1
Audio Out M3 stereo mini jack x 1
LAN/DIGITAL LINK RJ-45 x 1 for network and DIGIT AL LINK connection (video/network/serial control)
(HDBaseT"' compliant), 100Base-TX (Compatible with PJLink"' [Class 2]. Art-Net, HDCP 2.3,
Deep Color, 4K/60p4•5 signal input)
LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink"' [Class
2], Art-Net)
DC Out USS Type Ax 1 (for power supply, DC 5 V, 2 A)
Power supply AC 100-240V, 50Hz/60Hz
Maximum power consumption *6 465 W (5.1-2.5 A) (490 VA) (Power consumption is 445 Wat AC 200-240 V) (TBD)
On-mode power consumption
(Operating mode) *6
NORMAL 410W (AC 100-120V), 390W (AC 200-240V) (TBD), ECO 295W (AC 100-120V), 280
W (AC 200-240V) (TBD), QUIET 290W (AC100-120V), 275W (AC 200-240V) (TBD)
Cabinet Materials Molded Plastic
Filter Included (Estimated maintenance time: approx. 20,000 hours)
Operation Noise*2 34 dB (NORMAL/ECO), 27 dB (QUIET) (TBD)
Dimensions (W x H x D) 561 x 224 x 439 mm (22 3/32-x 8 13/16-x 17 9/32-) (With legs at shortest position,
including lens and protruding parts)
Weight*7 Approx. 18.6 kg (41.0 lbs) (with supplied lens)
Operating Environment Operating temperature: 0-45 °c (32-113 °F)8, operating humidity: 10-80% (no
condensation)
Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control for
iOS/Android""
, Geometry Manager Pro9
Note 1 When [PICTURE MODE] is set to [DYNAMIC] and [LIGHT POWER] is set to [NORMAL].
2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC
21118: 2020 international standards. Value is average of all products when shipped. 3
Around this time, light output will have decreased to approximately 50% of its original
level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2]). Estimated time until
light output declines to 50% varies depending on environment. 4 4K signals are
converted to the projector's resolution (1920 x 1200 pixels) upon projection. 5 YPBPR
4:2:0 format only for 4K/60p and 4K/50p signals input via DIGIT AL LINK. 6 measurements,
measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020
international standards. On-mode power consumption measured at 25 °C (77 °F) operating
temperature at an altitude of 700 m (2,297 ft). 7 Average value. May differ depending on
the actual unit. 8 Note that the projector cannot be used at altitudes 2,700 m (8,858 ft) or
higher above sea level. In the following operating environments, light output may be
reduced to protect the projector: when the projector is used at altitudes below 700 m
(2,297 ft) and ambient temperature is 36 °C (97 °F) or higher; when the projector is used at
Altitudes between 700 m (2,297 ft) and 1,400 m (4,593 ft) exclusive and ambient
temperature is 34 °C (93 °F) or higher; when the projector is used at altitudes between
1,400 m (4,593 ft) and 2,100 m (6,890 ft) exclusive and ambient temperature is 32 °C (90
°F) or higher; and when the projector is used at altitudes between 2,100 m (6,890 ft) and
2,700 m (8,858 ft) exclusive and ambient temperature is 30 °C (86 °F) or higher. 9 This
projector series does not support some functions available in Geo Pro software.
Detailed information
Detailed information
Features
Features
- Resolution: WUXGA (1920x1200)
- Brightness: 8,200 ANSI lumens
- Light source: LCD laser diode
- Contrast: 3,000,000:1
- Color: White
