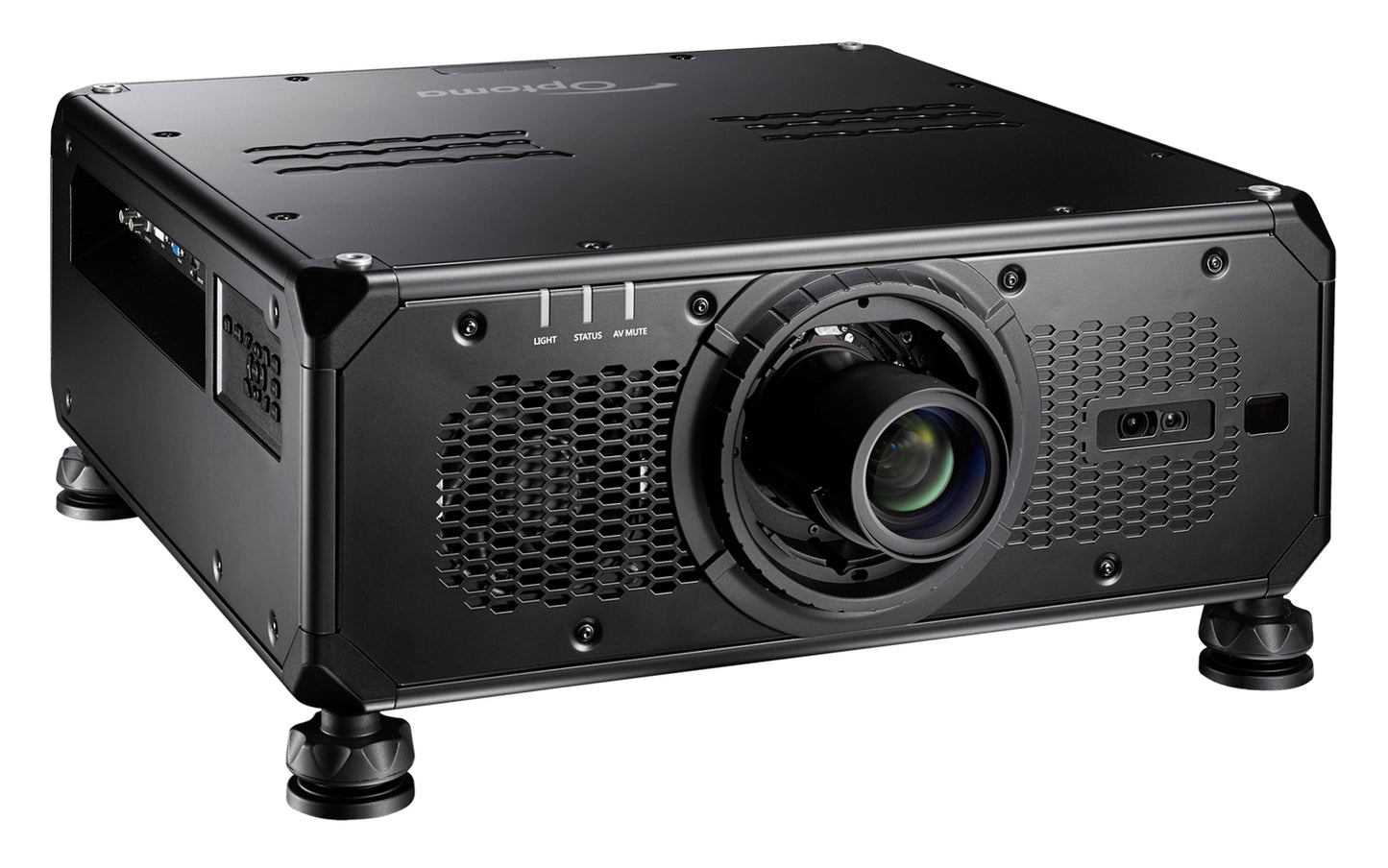

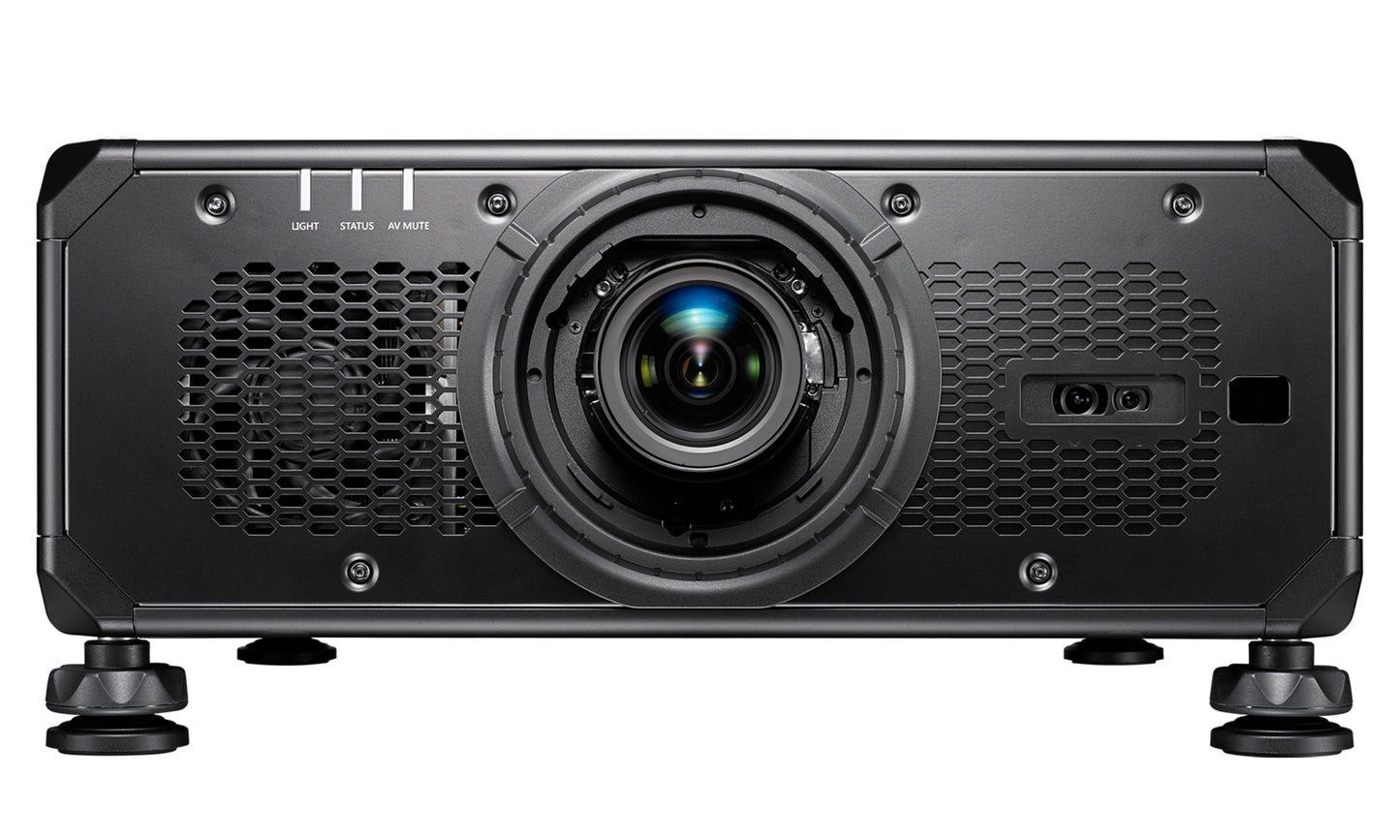

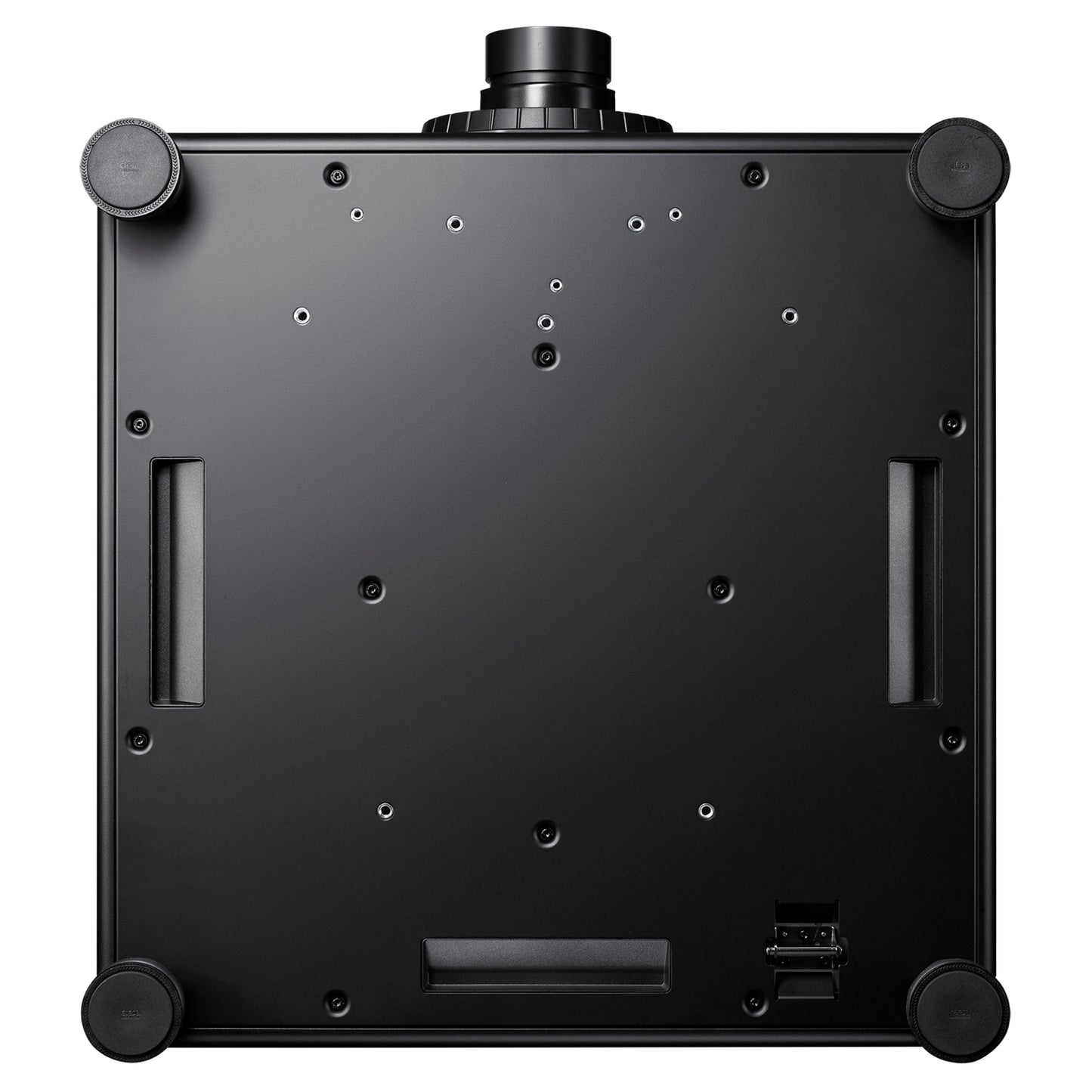

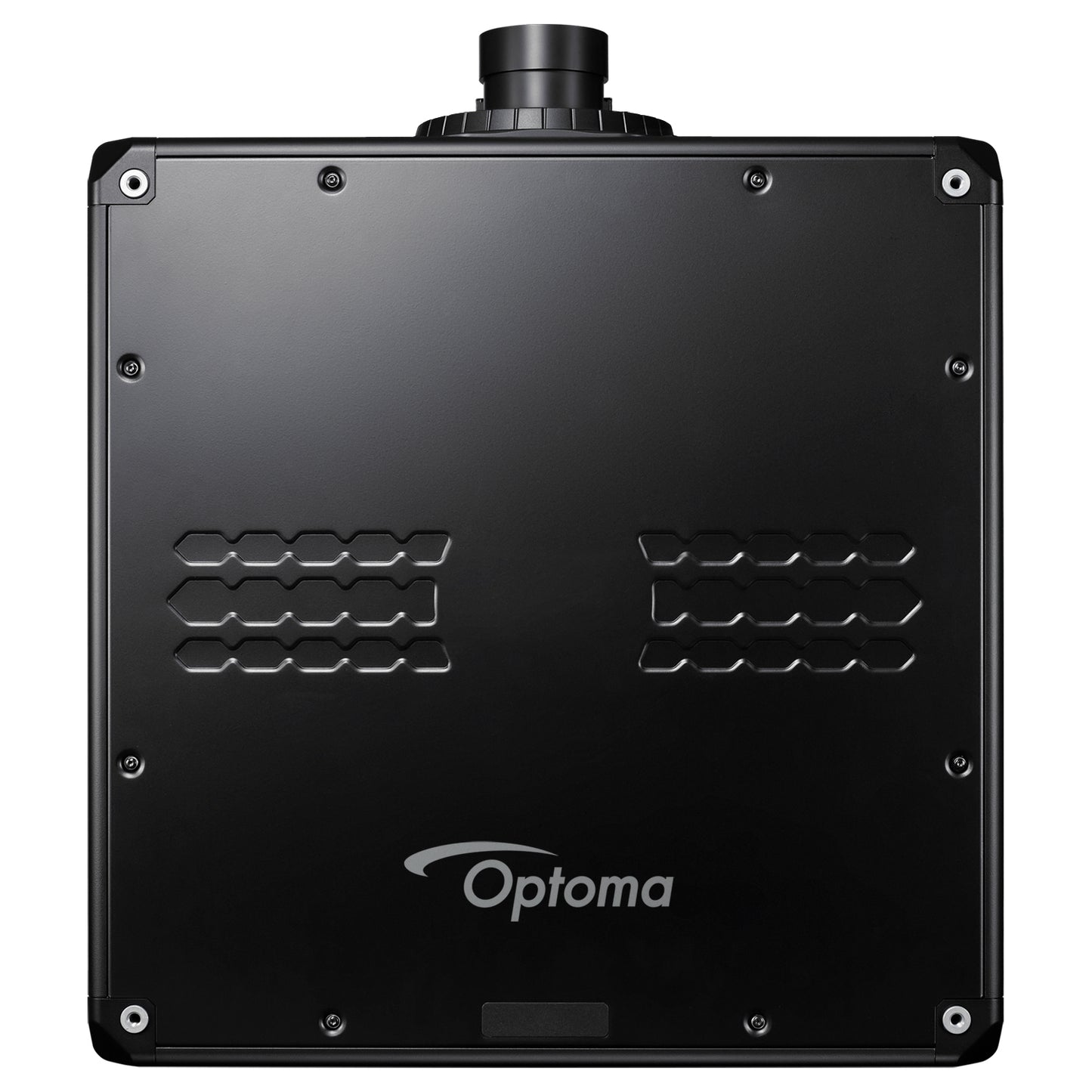

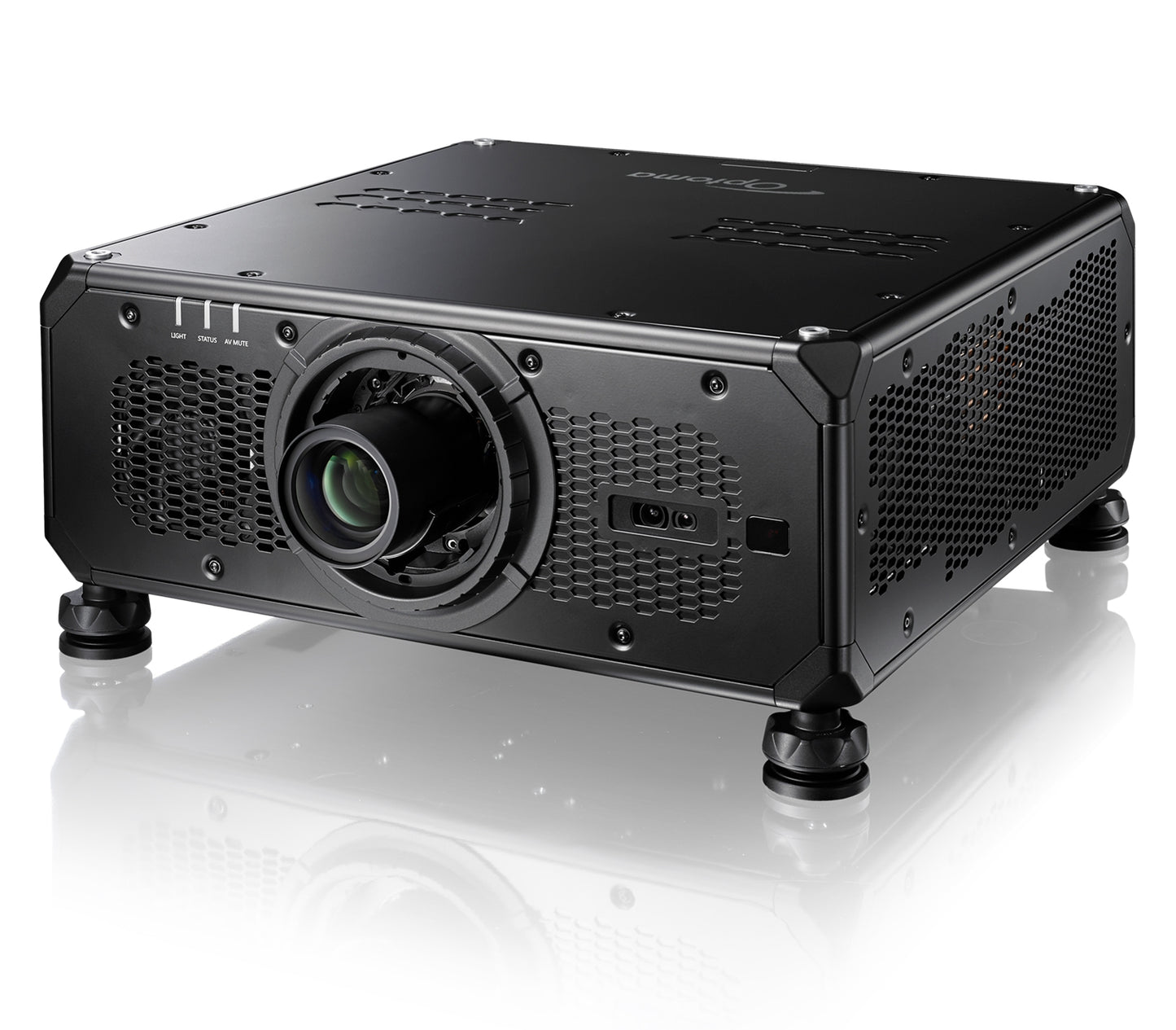

Optoma ZU2200 WUXGA DLP laser projector with very high brightness 22,000 lumens without lens
Optoma ZU2200 WUXGA DLP laser projector with very high brightness 22,000 lumens without lens
Couldn't load pickup availability
SKU:ZU2200
Delivery time 5 - 7 days *1
Question about the product
Question about the product
Ultra-bright professional WUXGA laser projector
The Optoma ZU2200 is a professional, high-brightness laser projector designed to meet the needs of high-end entertainment, exhibition, and digital signage installations.
As part of Optoma's Ultra Bright series, the ZU2200 offers an incredibly high brightness of 22,000 lumens as well as extreme flexibility with eight interchangeable lenses to meet the needs of even the most complex installations.
As part of the Optoma DuraCore laser lineup, the high-performance projector features 4K HDR compatibility, Pure Engine video processing, and color adjustment to produce visually stunning, lifelike images with exceptional detail and high color accuracy. Additionally, the ZU2200 achieves superior color reproduction thanks to MultiColor Laser (MCL) technology.
The ZU2200 is characterized by its high reliability. The laser projector can operate around the clock, has a laser lifetime of up to 30,000 hours, and is IP5X certified, ensuring optimal and reliable performance even under extreme conditions of up to 50 degrees Celsius.
Featuring a robust metal chassis and modular design for easier maintenance, a wide range of connectivity options, and a fail-safe redundancy mode for instant source switching, the Ultra Bright Series projector offers a solution for complicated installations, including multi-projector and dome projection applications.
-
WUXGA DLP laser projector with very high brightness
-
22,000 lumens
-
Flexible installations
-
8 interchangeable lenses
-
Highest reliability
-
Integrated redundancy mode
-
Impressively lifelike images
-
Pure Engine video processing and color adjustment
Specifications
Specifications
Display technology
DLP
resolution
WUXGA (1920x1200)
brightness
22,000 lumens
ANSI lumen brightness
18,500
Contrast ratio
2,000,000
Aspect ratio
16:10
Compatible image formats
16:9,16:10
Screen size
Depending on the lens
light source
DuraCore MultiColor Laser
LASER lifespan
30,000 hours
projection ratio
Depending on the lens
Projection distance (m)
Depending on the lens
Lens options
BX-CTA11, 0.65~0.75:1BX-CTA18, 0.84~1.02:1BX-CTA19, 1.02~1.36:1BX-CTA20, 1.2~1.5:1BX-CTA21, 1.5~2.0:1BX-CTA22, 2.0~4.0:1BX-CTA23, 4.0~7.2:1BX-CTA27, 7.2~10.8:1
Connections

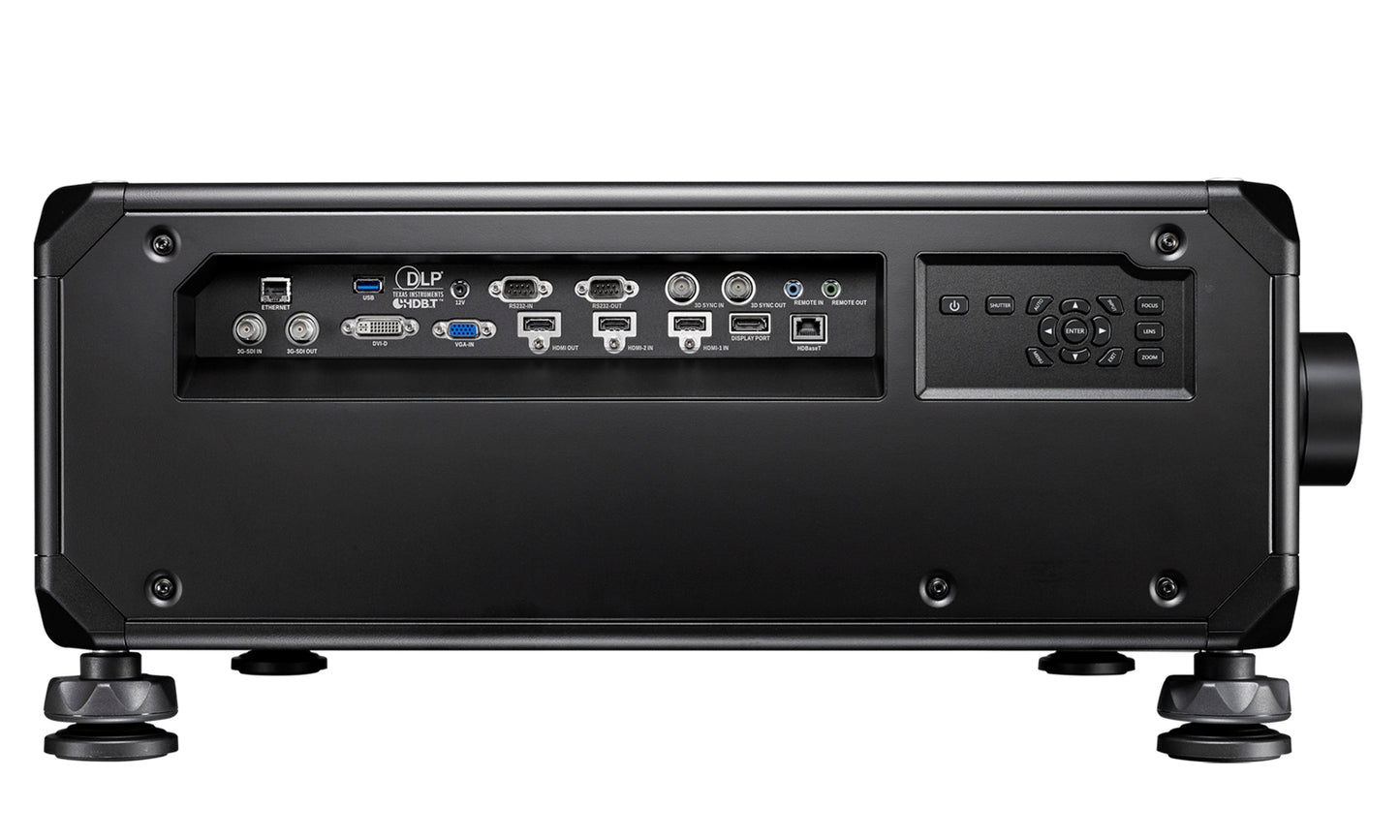

Connections1 x RS232, 1 x 3D Sync, 1 x Wired Remote Control, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDIExits1 x RS232, 1 x 3D Sync, 1 x Wired Remote Control, 1 x HDMI, 1 x 3G-SDIsteering1 x RJ45, 1 x USB-A service, 1 x 12V trigger
LAN - Wireless connection
No
Operating noise ECO
38 dB
Operating noise (max)
40 dB
3D
Full 3D
IP rating
TB
OSD / Display Languages
11 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
24/7 operation
Yes
360° view
Yes
Operating conditions
Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing
remote control
Illuminated ProAV remote control
LAN - Display
Yes
LAN - Wireless connection
No
LAN
Yes
Power supply
AC 100–240 V @ 50/60 Hz
Power consumption (standby)
0.5W
Power consumption (min)
590W
Power consumption (max)
1,200W
Dimensions (W x D x H) (mm)
650 x 682 x 300.86
Gross weight
66.5 kg
Net weight
54 kg
