Optoma ZH507+ Laser Projector Full HD 1080p 5,500 ANSI

Question about the product

Display technology

DLP™

resolution

1080p Full HD (1920x1080)

brightness

5,500 lumens

Contrast ratio

300,000

Aspect ratio

16:9

Compatible image formats

4:3

Keystone correction - horizontal

+/-30°

Keystone correction - vertical

+/-30°

Has vertical auto keystone correction

Yes

Displayable colors (millions)

1073.4

Horizontal scan rate

15,375 ~ 91,146 Khz

Vertical scan rate

50 ~ 85 Hz (120 Hz for 3D) Hz

uniformity

80%

Screen size

0.51m ~ 8.14m (20.2" ~ 320.4") diagonal

light source

Laser

LASER lifespan

30,000 hours

projection ratio

1.4:1 ~ 2.24:1

Projection distance (m)

1m - 10m

zoom

1.6

Zoom Type

Manually

Focal length (mm)

20.91mm~32.62mm/0.823"~1.284"

Lens Shift

Vertical +16%

Native Offset

100%

Lens Shift

Yes -see documentation for details

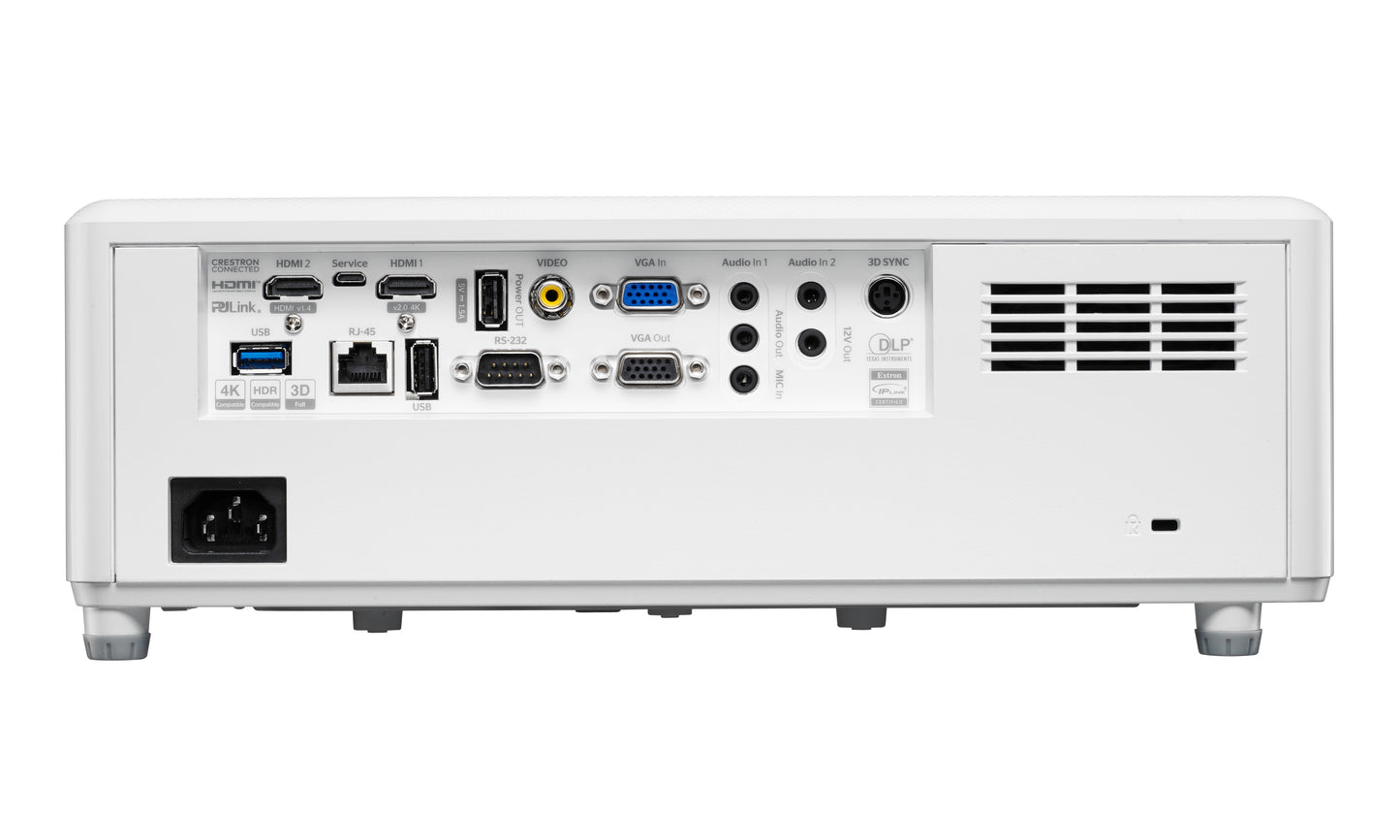

Connections

Connections1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 2 x Audio 3.5mm, 1 x Mic 3.5mm, 1 x Composite videoExits1 x VGA, 1 x Audio 3.5mm, 1 x USB-A Power 1.5A, 1 x USB-A 2.0, 1 x USB-A 3.0steering1 x RS232, 1 x RJ45, 1 x 12V trigger, 1 x Micro USB service, 1 x 3D sync

Operating noise ECO

30 dB

Operating noise (max)

32 dB

Computer Compatibility

UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac

2D compatibility

NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4.43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)

3D compatibility

Side-by-Side:1080i50/60, 720p50/60 Frame pack: 1080p24, 720p50/60 Over-Under: 1080p24, 720p50/60

3D

Full 3D

Security

Security mount, Kensington Lock, password-protected interface

IP rating

IP6X

OSD / Display Languages

25 languages: Arabic, Czech, Norwegian/Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (Simplified), Spanish, Swedish, Chinese (Traditional), Turkish, Vietnamese

24/7 operation

Yes

360° view

Yes

Operating conditions

5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85%

remote control

Remote control with mouse function

Heat distribution

918BTU/hour

Speaker

2

Watts per speaker

10W

Standard accessories

AC power cable, remote control, 2x AAA batteries, USB wireless adapter, base, user manual

Input delay

16.20ms

Optional wireless models

UHDCast Pro, QuickCast Bundle, QuickCast starter kit

LAN control

Yes

Power supply

100V ~ 240V, 50-60Hz

Power consumption (standby)

<0.5W

Power consumption (min)

227W

Power consumption (max)

282W

Dimensions (W x D x H) (mm)

337 x 265 x 122.5

Gross weight

6.6 kg

Net weight

4.5 kg

DuraCore

Our projectors achieve industry-leading runtimes with Optoma DuraCore technology, featuring advanced laser diode cooling techniques and an innovative, dust-resistant design.

CONNECT ACROSS PLATFORMS

Connect each device.

With CreativeCast Pro™, you can wirelessly cast, share, or stream your content to the big screen. Mirror high-quality images, videos, documents, and audio files from your smartphone, laptop, or PC to the screen—all with the touch of a button. Bringing your own device has never been easier.

CONNECT ANYTIME, ANYWHERE.

Worry-free.

Teachers can rely on their IT managers to support them remotely with the Optoma Management Suite (OMS) solution. IT managers can monitor and diagnose issues with any AV display, so teachers aren't left in the dark. Teachers can also set alerts and send emergency announcements.

Full HD 1080p

1080p resolution delivers razor-sharp and detailed HD images—without any downscaling or compression. This makes it perfect for watching Blu-ray movies, HD TV broadcasts, and for use with game consoles.

IP6X Airtight optical unit

Independently tested and certified to IEC Standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with impressive brightness ensures industry-leading durability – essential for 24/7 operation in challenging environments.

HDR compatible

Optoma's HDR-compatible projectors are capable of receiving and displaying HDR metadata. This allows you to see even more detail and texture. Objects are rendered more realistically, and these additional details create a greater sense of depth—as if you were looking through a window.

High contrast ratio

Add depth to your images – a high contrast ratio makes whites appear brighter and blacks appear deep. This brings your images to life and makes text appear sharp and clear – ideal for business and teaching.

Amazing Color

Optoma projectors deliver reliable color performance for any content and any environment. From accurate sRGB colors to razor-sharp presentations, we have the display mode to suit your needs.

Vertical lens shift

The vertical lens shift simplifies your installations by offering a wider range of placement options. This allows for more flexible projector positioning and allows for a variety of image sizes.

Horizontal Keystone Correction and Four Corner Adjustment

With horizontal keystone correction and individually adjustable image corners, you can create a perfectly square image. Ideal for uneven walls or unusual projector placements.

Portrait projection

Ideal for digital signage applications You can rotate your projector 90 degrees to project a portrait image.

360 degree projections

Images can be projected over 360 degrees along the horizontal axis.

Network and control

Thanks to a variety of control options, the projector is easy to monitor and manage.

RS232

Optoma projectors can be easily monitored and controlled with virtually any control system thanks to a wide range of RS232 commands.

AMX compatibility

The Dynamic Discovery protocol built into the projector allows easy installation with any AMX control system.

LAN control

With compatible RoomView® software, you can turn up to 250 projectors on and off, monitor, and control them simultaneously from any PC.

Program the switching on and off

Control and adjust settings via a simple web browser.

Ability to send emergency messages.

Automatic reminder to change the lamp.

PJLink

The PJLink protocol built into the projector allows easy installation with PJLink compatible control systems.

Telnet

This model is capable of receiving commands via Telnet, allowing easy installation with Telnet-compatible control systems.

Full 3D

Optoma projectors can display 3D content from virtually any 3D source, including 3D compatible graphics cards, 3D delivery systems, and the latest generation of 3D media servers.

Built-in speaker

Save time and effort on external speakers - the built-in speaker delivers great sound.

USB Power

Use USB power to power an HDMI dongle, such as Google Chromecast.

AV Mute Function

Stay in control with the AV Mute function. Direct your audience's attention away from the screen by muting the image.

Quick Resume

If the projector is accidentally turned off, you can turn it back on immediately thanks to this feature.

Automatic shutdown function

The projector may be on even when not in use. To save energy in these cases, the auto-off function ensures that the projector shuts down after a preset time.

Direct Power On

The projector turns on immediately when power is applied. This eliminates the need for additional switching on via remote control or keyboard – ideal for use in rooms with a master power switch.

Automatic shutdown function

Turn off your projector immediately without hesitation. This means you don't have to wait for the projector to cool down before turning it off.

24/7 operation

All Optoma projectors are designed for 24/7 use. The use of the finest components ensures unbeatable reliability.

24/7 Operation - The standard lamp warranty applies. The projector warranty is based on standard usage within a typical business day. For optimal performance, we recommend turning the projector off or on standby for 30 minutes every 24 hours to extend the lamp life.

WiFi

Connect wirelessly to your network for internet access and OTA (over-the-air updates).
