Optoma ZU1100 WUXGA DLP Laser Projector with High Brightness 12,000 Lumens Projector without Lens

Name: Optoma ZU1100 WUXGA DLP Laser Projector with High Brightness 12,000 Lumens Projector without Lens
Brand: Optoma
SKU: ZU1100
Price: 13034.38 EUR
Availability: InStock

SKU:ZU1100

€13.034,38 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Delivery time 5 - 7 days *1

Quantity

Question about the product

Spectacular image quality, low maintenance and maximum reliability

The ZU1100 offers advanced features such as integrated edge blending and warping. As part of the DuraCore laser line, it combines a longer-life light source with an independent IP-certified dust protection rating for enhanced safety.

With a laser light source that lasts up to 30,000 hours, this projector achieves excellent color reproduction and delivers visually stunning, lifelike images with exceptional detail.

Designed for even the most complex professional installations, the ZU1100 offers seven interchangeable lens options, including an ultra-short throw lens and a dome lens, for ultimate flexibility.

For large-scale projection or stacking, the ZU1100 offers integrated edge blending and warping, as well as support for portrait orientation and 360-degree orientation. It also features an HDBaseT™ input, simplifying cabling and reducing installation complexity.

WUXGA DLP laser projector with high brightness
12,000 lumens
DuraCore laser technology
Up to 30,000 hours laser light source
Dust-protected
Independently tested, IP6X certified for absolute reliability
Flexibility in installation
7 interchangeable lens options, including an ultra-short-throw lens
Without lens

Specifications

Display technology

DLP™

resolution

WUXGA (1920x1200)

brightness

11,500 lumens

ANSI lumen brightness

9,600

Contrast ratio

2,000,000

Aspect ratio

16:10

Compatible image formats

4:3,16:9,16:10

Keystone correction - horizontal

+/-20°

Keystone correction - vertical

+/-20°

uniformity

90%

Screen size

Depending on the lens

light source

Laser

LASER lifespan

30,000 hours

projection ratio

Depending on the lens

Projection distance (m)

Depending on the lens

Lens options

BX-CTA16- 0.36 ~ 0.36BX-CTA17- 0.65~0.75BX-CTA15- 0.75 ~ 0.95BX-CTA01- 0.95 ~ 1.22BX-CTA06- 1.22 ~ 1.52BX-CTA03- 1.52 ~ 2.92BX-CTA13- 2.90 ~ 5.50

Lens Shift

Yes -see documentation for details

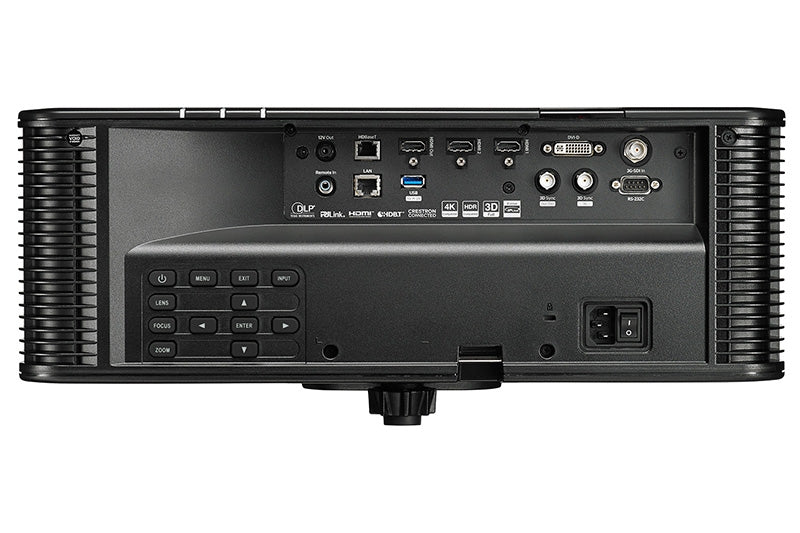

Connections

Connections2 x HDMI 2.0, 1 x 3D Sync, 1 x DVI-D, 1 x HDBaseT, 1 x 3G-SDI, 1 x 12V triggerExits1 x 3D Sync, 1 x HDMI, 1 x USB-A Power 2Asteering1 x RS232, 1 x Wired remote control, 1 x RJ45

Operating noise ECO

38 dB

Operating noise (max)

40 dB

Computer Compatibility

HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible

2D compatibility

PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)

3D compatibility

Side-by-Side:1080i50/60, 720p50/60 Frame pack: 1080p24, 720p50/60 Over-Under: 1080p24, 720p50/60

3D

Full 3D

Security

Security mount, Kensington Lock

IP rating

IP6X

OSD / Display Languages

11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (Simplified), Spanish

24/7 operation

Yes

360° view

Yes

Operating conditions

5°C~40°C/41°F~104°F, max altitude M/0ft, max humidity 10-85%

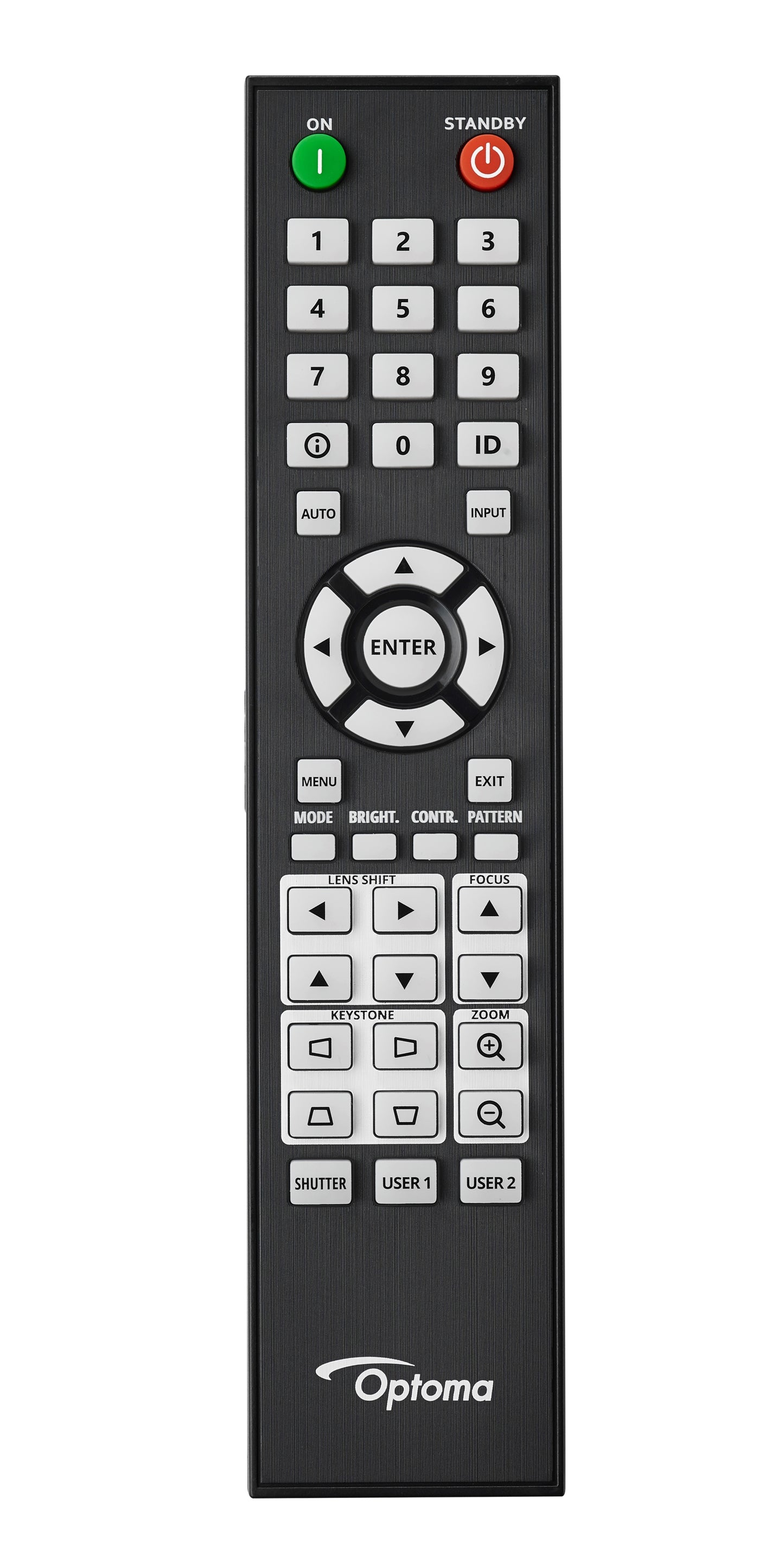

remote control

Wired ProAV remote control

Standard accessories

AAA battery, AC power cable 3M, lens cover, quick start guide

Optional wireless models

QuickCast Bundle, QuickCast starter kit

LAN

Yes

Power supply

100-240V, 50-60Hz

Power consumption (standby)

0.5W

Power consumption (min)

360W

Power consumption (max)

680W

Dimensions (W x D x H) (mm)

484 x 529 x 207.8

Net weight

21 kg

Detailed information

DuraCore

Our projectors achieve industry-leading runtimes with Optoma DuraCore technology, featuring advanced laser diode cooling techniques and an innovative, dust-resistant design.

IP6X Airtight optical unit

Independently tested and certified to IEC Standard 60529 with an IP6X dust resistance rating. Outstanding dust resistance combined with impressive brightness ensures industry-leading durability – essential for 24/7 operation in challenging environments.

Integrated warping and edge blending processor

The integrated warping and edge blending processor allows the images of multiple projectors to be aligned without additional hardware, thus reducing installation costs and effort. Warping and blending can be configured either via the on-screen menu or with PC software (depending on the model).

*Compatible graphics card with overlap function required.

HDR compatible

Optoma's HDR-compatible projectors are capable of receiving and displaying HDR metadata. This allows you to see even more detail and texture. Objects are rendered more realistically, and these additional details create a greater sense of depth—as if you were looking through a window.

HDBaseT™

Send uncompressed Full HD video, audio, network, and control commands over a single CAT-type cable up to 100 meters without signal loss—for quick and easy installations. HDBaseT™ simplifies installation and saves time and money.

Amazing Color

Optoma projectors deliver reliable color performance for any content and any environment. From accurate sRGB colors to razor-sharp presentations, we have the display mode to suit your needs.

Color Management System (CMS)

Display lifelike colors with this feature. It offers the ability to precisely adjust colors for optimal precision.

Brightness adjustment

A valuable feature for any professional installation with more than one projector. Multiple units of the same model and similar lamp usage can be fine-tuned to deliver the same brightness levels. This is especially important when projecting side by side.

Constant Power

Allows the user to adjust the power levels to meet the individual requirements of the installation. Power levels can be adjusted to achieve the brightest image or the longest runtime of the light source—or anywhere in between.

Constant brightness

The advanced light-sensing technology allows for the setting of brightness levels that remain unchanged over time. Ideal for providing consistent brightness in finely tuned installations.

True AV Mute

True AV Mute allows you to turn the projector's light source on and off with the touch of a button. Unlike the standard AV Mute function, no light is emitted from the projector, ensuring a 100% black image.

Extreme Black

Extreme Black ensures that the laser diodes are completely switched off as soon as a completely black image frame is detected. This feature is perfect for situations where a total image blackout is necessary.

Full Lens Shift

Full lens shift offers a wider variety of placement options. This makes the projector easier to align and delivers a wider range of image sizes.

Picture by Picture Picture-in-Picture

Signals can be transmitted simultaneously via the HDMI and DVI ports to deliver PbP or PiP from two digital sources - perfect for video conferencing and other collaborative applications.

360 degree projections

Images can be projected over 360 degrees along the horizontal axis.

Portrait projection

Ideal for digital signage applications You can rotate your projector 90 degrees to project a portrait image.

Customize your projector

Choose from any color in the RAL color range and customize your projector's color to your liking. Perfect for customized installations.

*Please contact us for further information.

Full 3D

Optoma projectors can display 3D content from virtually any 3D source, including 3D compatible graphics cards, 3D delivery systems, and the latest generation of 3D media servers.

Wired remote control connection

The wired remote control connection allows you to individually control all aspects of the projector without having to be within line of sight of the projector—essential when using multiple devices during live events. (Cable available separately)

Network and control

Thanks to a variety of control options, the projector is easy to monitor and manage.

RS232

Optoma projectors can be easily monitored and controlled with virtually any control system thanks to a wide range of RS232 commands.

AMX compatibility

The Dynamic Discovery protocol built into the projector allows easy installation with any AMX control system.

LAN control

With compatible RoomView® software, you can turn up to 250 projectors on and off, monitor, and control them simultaneously from any PC.

Program the switching on and off

Control and adjust settings via a simple web browser.

Ability to send emergency messages.

Automatic reminder to change the lamp.

PJLink

The PJLink protocol built into the projector allows easy installation with PJLink compatible control systems.

Telnet

This model is capable of receiving commands via Telnet, allowing easy installation with Telnet-compatible control systems.

Features

WUXGA DLP laser projector with high brightness | 12,000 lumens
DuraCore laser technology | Up to 30,000 hours of laser light source
Dustproof | Independently tested, IP6X certified for absolute reliability
Installation flexibility | 7 interchangeable lens options, including an ultra-short-throw lens
