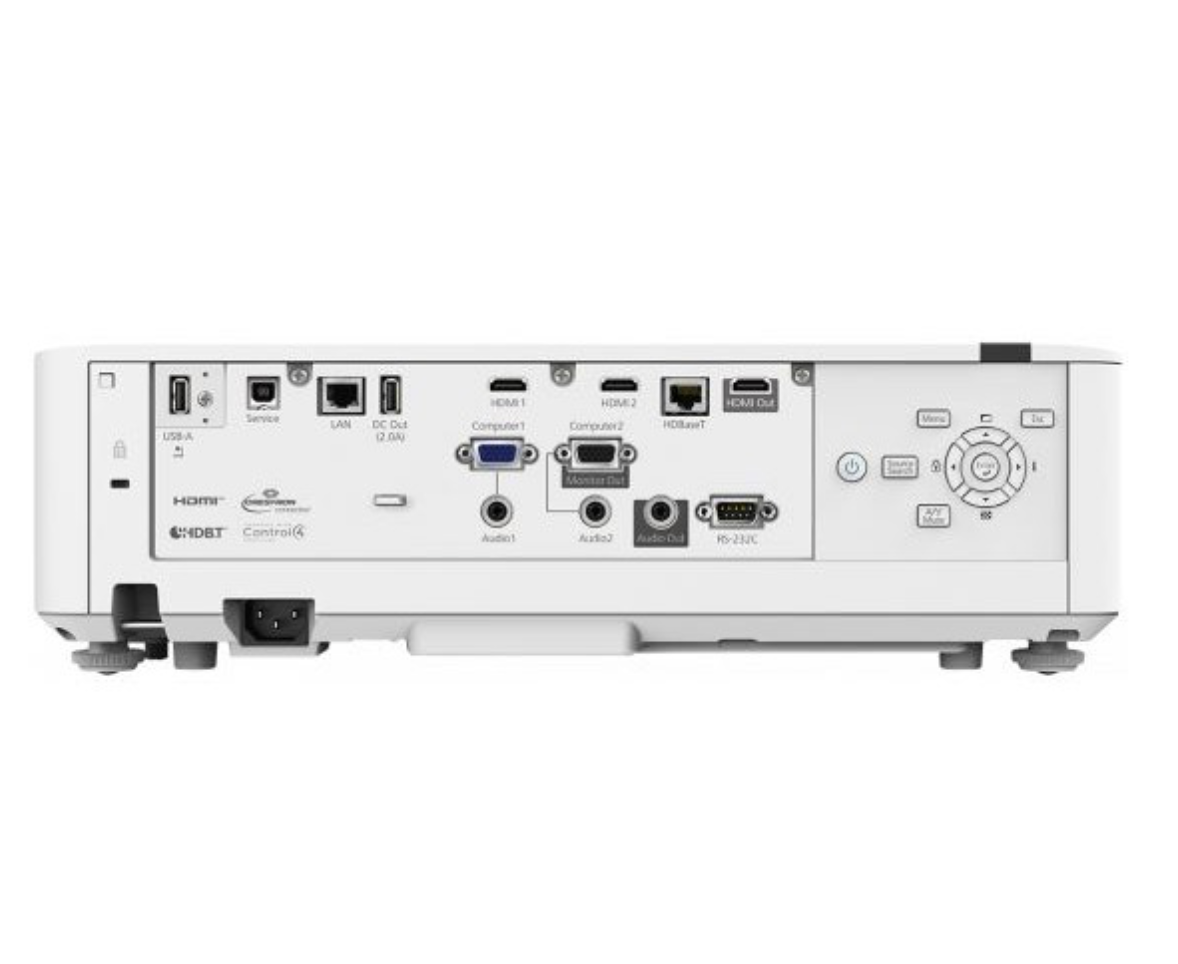

  • Epson EB-L530U Full HD Laser Projektor mit 1080p, 5.200 Lumen Anschlüsse
  • Epson EB-L530U Full HD Laser Projektor mit 1080p, 5.200 Lumen von oben
  • Epson EB-L530U Full HD Laser Projektor mit 1080p, 5.200 Lumen test
1 5

Epson

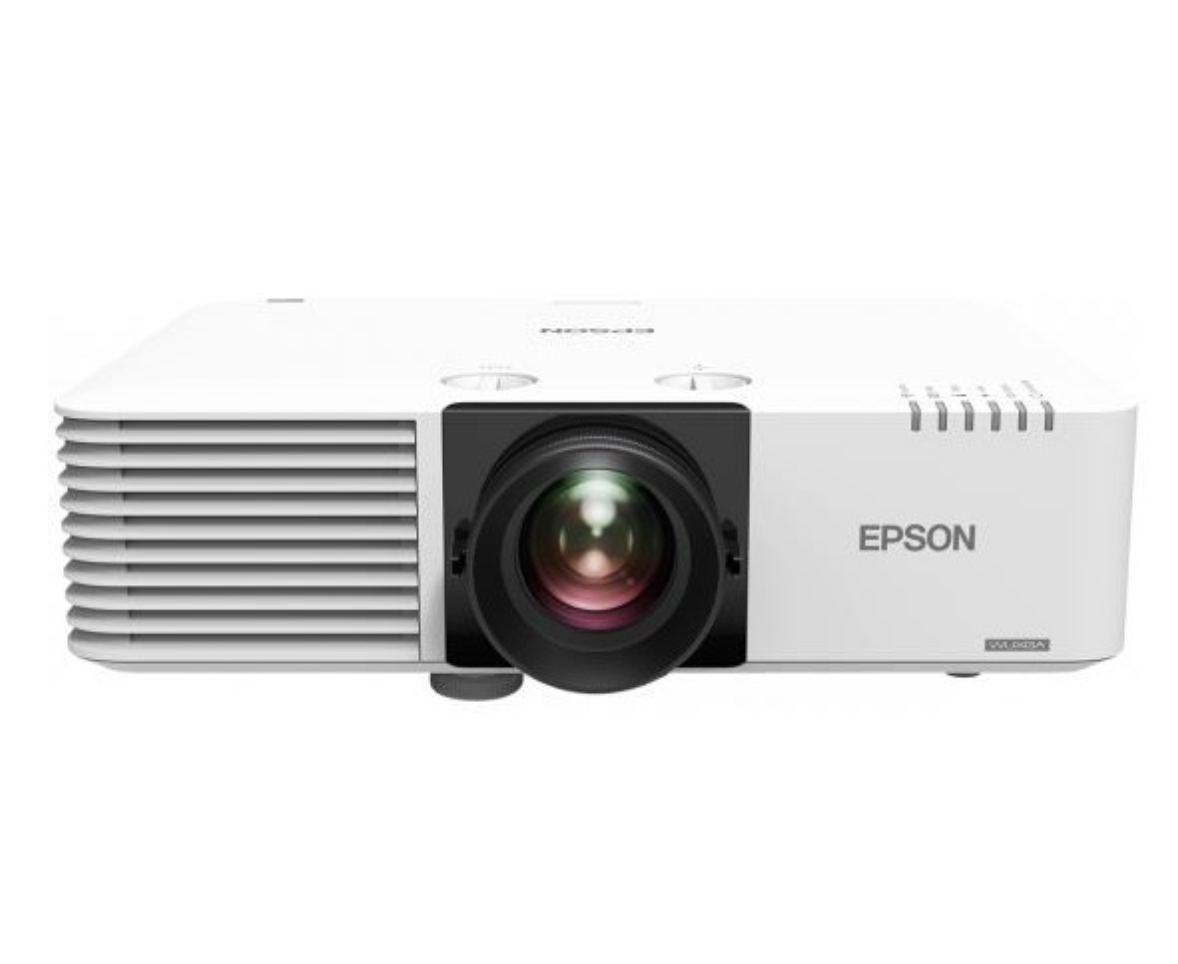

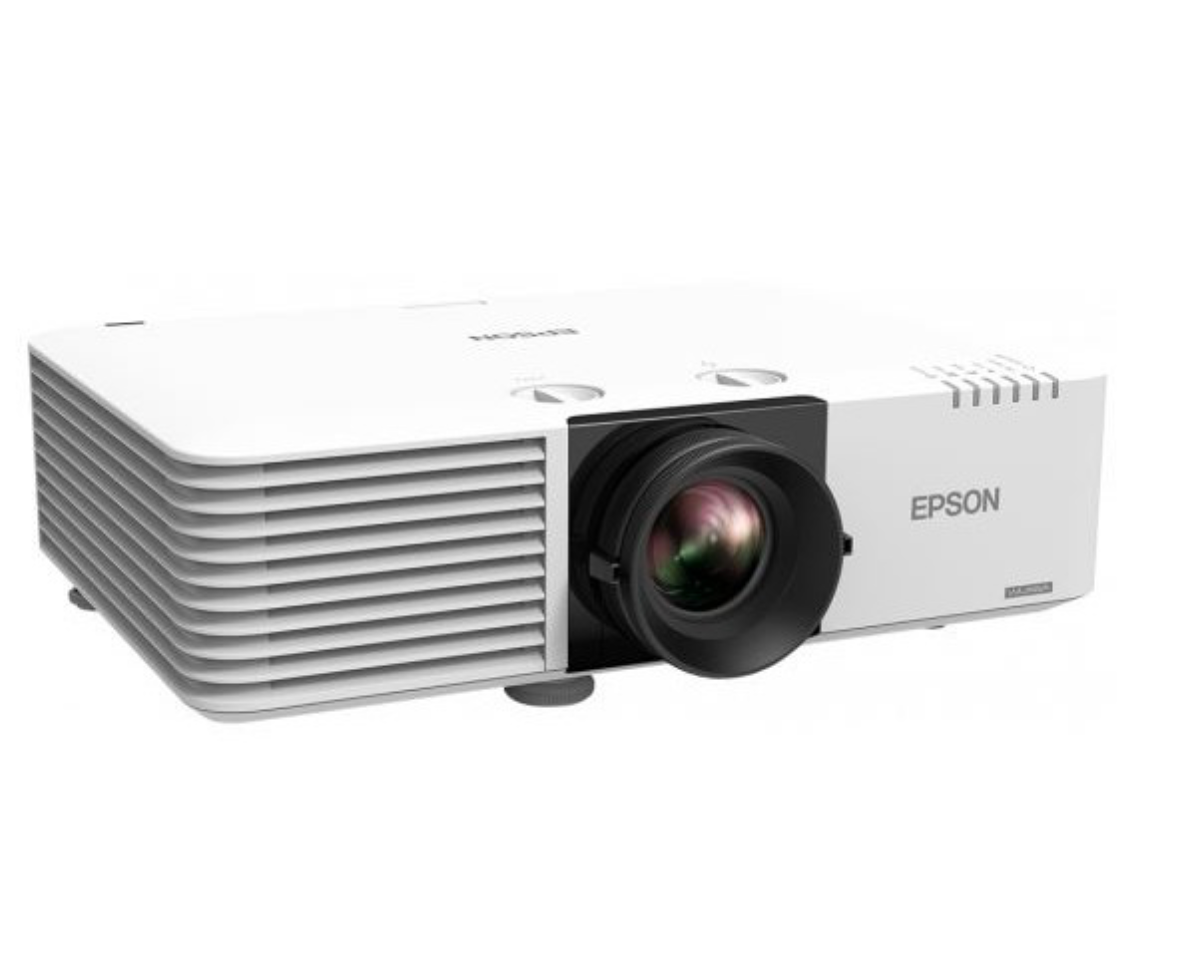

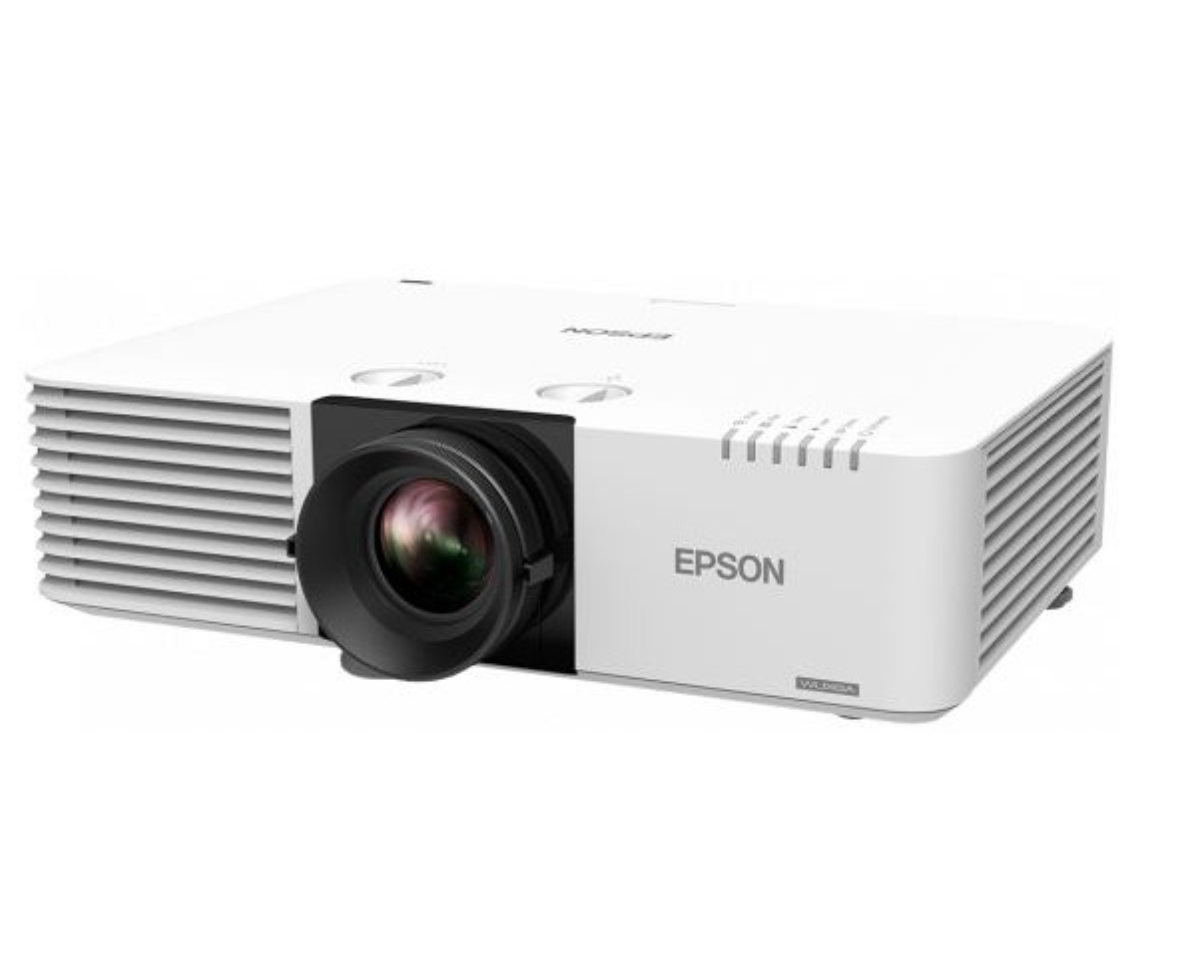

Epson EB-L530U Full HD Laser Projector with 1080p, 5,200 lumens

Epson EB-L530U Full HD Laser Projector with 1080p, 5,200 lumens

EB-L530U

€2.045,00 EUR
€2.045,00 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Delivery time 8 - 10 days *1

Question about the product

Question about the product

Laser projection solution

  • 5,200 lumens white/color brightness Razor-sharp and brilliant colors, even in bright rooms
  • WUXGA resolution Sharp images in Full HD for optimal readability
  • Future-proof connectivity options 4K input support, HDMI, HDBaseT, built-in Wi-Fi and screen mirroring
  • Easy and versatile installation Lightweight and compact device with large lens shift range
  • Ideal for social distancing requirements Scalable screen size up to 500 inches (12.7 m)
Benefit from brighter projections
Easy installation
Adjust the scale to your environment

Benefit from brighter projections

The EB-L530U produces more appealing and impactful projections, even in brightly lit environments. It offers an impressive 5,200 lumens of white and color brightness and WUXGA Full HD resolution at an affordable price. You get the performance and reliability of a laser projector while also reducing power consumption. This model offers many other advantages: 4K input support, detail enhancement technology, edge blending technology, and a wide lens shift range for demanding installation environments. The EB-L530U is suitable for projection surfaces up to 500 inches (12.7 m) without compromising sharpness or detail.

Easy installation

The EB-L530U includes many professional features that simplify installation, even when creating state-of-the-art projections. This sleek and compact projector offers 360-degree installation without compromising display quality, and it supports 16:6 ultra-widescreen, allowing you to maximize the available viewable projection area. Additionally, the split-screen function allows you to display two or four images from different sources simultaneously; geometric correction and edge blending technology help create one large, seamless image using multiple projections.

Adjust the scale to your environment

Unlike a flat panel display, there's no glare, no fingerprints, and no wasted wall space. The image can be scaled to the required display size of 50 to 500 inches (1.27 to 12.7 m). Whether for educational institutions, corporate settings, retail, or visitor attractions, the viewing experience is unobstructed and more engaging for the audience.
Connect and control
Create custom content for signage
Plug in, click and collaborate

Connect and control

The EB-L530U offers a wide range of connectivity options, including simultaneous display of multiple sources and wireless presentations. Future-proof connectivity options include HDMI (in and out) and HDBaseT with 4K signal support, 5 GHz wireless with professional security features, updated Miracast, a built-in media player, and support for Epson's ELPWP10 wireless presentation system. Setup and navigation are also a breeze thanks to the intuitive on-screen user interface.

Create custom content for signage

The EB-L530U features a built-in media player for uploading network content. This allows playlists to be loaded onto a USB storage device and played directly from the projector.² Create custom content with your smartphone or tablet using the Epson Creative Projection app, or create and schedule playlists with the Epson Projector Content Manager software.

Plug in, click and collaborate

Easily collaborate with the ELPWP10 wireless presentation system from Epson. Benefit from cost-effective and modern Wi-Fi connectivity. No cables – simply plug and play!
Take control of your projected images
Ideal for maintaining social distancing

Take control of your projected images

Achieve a higher level of image editing and control with the Epson Projector Professional Tool software. Advanced features like edge blending technology, projection alignment, and multi-projector control are simplified thanks to this free and intuitive tool.

Ideal for maintaining social distancing

In environments where social distancing is necessary and responsible, large-format projection of up to 500 inches (12.7 m) allows content to be viewed from any position.
The EB-L530U 5,200 lumen fixed lens laser projector is ideal for educational institutions, businesses, retail, and visitor attractions.
  • 5,200 white/color brightness
  • Large lens shift range
  • Integrated Wi-Fi
  • Large, scalable projections
As the market leader in 3LCD technology, Epson continuously improves its high-brightness laser projectors with ever-smaller footprints and more compact housings. The EB-L530U excels at delivering particularly effective, practical, and well-thought-out features for a wide range of industries.

Specifications

Technology

Projection system

3LCD technology, RGB liquid crystal shutter

LCD panel

0.67 inch with C2 Fine


Color brightness

5,200 lumens - 3,640 lumens (in economy mode) according to IDMS15.4

White brightness

5,200 lumens - 3,640 lumens (in economy mode) In accordance with ISO 21118:2020

resolution

WUXGA

High Definition

Full HD

Image format

16:10

Pixel Numbers

2,304,000

Contrast ratio

Over 5,000,000 : 1

light source

Laser

light source

20,000 hours Durability High, 30,000 hours Durability Eco

Keystone correction

Manual Vertical: ± 30 °, Manual Horizontal ± 30 °

Video editing

10 bits

Color reproduction

up to 1.07 billion colors

optics

projection ratio

1.35 - 2.20:1

zoom

Manual, Factor: 1 - 1.6

Zoom ratio of the lens

1.35 - 2.2 : 1

lens

Optical

Lens Shift

Manual - Vertical ± 50%, Horizontal ± 20%

Projection screen

50 inches - 500 inches

Projection distance wide angle

1.4 m - 14.8 m

Projection distance telephoto

2.4 m - 23.8 m

Projection distance wide angle/telephoto

1.44 m - 23.84 m

Projection lens F

1.5 - 1.7

focal length

20 mm - 31.8 mm

focus

Manually

Connectivity

Connections

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX/10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5 GHz), VGA input (2x), VGA output, HDMI output, HDBaseT, Miracast, jack plug, jack socket (2x), HDMI (HDCP 2.3) (2x), playback via USB 2, Type A

Smartphone connection

Ad-hoc/Infrastructure

Network protocol

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced features

Security

Kensington lock, control panel lock, security cable slot, wireless LAN lock, wireless LAN security, password protection

2D color modes

Dynamic, Cinema, Presentation, sRGB, DICOM SIM

Features

21:9 aspect ratio support, A/V mute, Point & Arc correction, Auto power on, Auto input source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain multi-projection, Digital zoom, Instant power on/off, Document camera compatible, Edge blending technology, Home screen, Horizontal and vertical keystone correction, JPEG viewer, Long-life light source, PC-free, Power on button, Quick Corner, Schedule function, Screen mirroring, Split screen function, Super resolution, Extremely wide display (16:6), Volume control, Web control, Web remote control, Wireless LAN capable, iProjection app

Color modes

Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector control

via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

234 W (Normal On-Mode), 164 W (Eco On-Mode), 293 W (Normal Peak-mode), 223 W (Eco Peak-Mode), 0.3 W (Energy saving standby)

Operating voltage

AC 100V - 240V, 50Hz - 60Hz

Dimensions

440 x 339 x 136 mm (width x depth x height)

Weight

8.2 kg

Noise level

Standard mode: 31 dB(A) - Economy mode: 23 dB(A)

temperature

Storage -10°C - 60°C

humidity

Operating 20% ​​- 80%, Storage 10% - 90%If the projector is installed using a ceiling or wall mount in a heavily oily atmosphere, or in locations where oils and chemicals are evaporated, or where aromatic oils are regularly burned, these substances may attack certain materials in our products, causing them to weaken over time and possibly causing the projector to fall from its mount.If you need further information about the environments in question, or if you have any other questions, please contact our service department, who will be happy to assist you.

Accesories

Connection and control unit, document camera, external speaker, HDBaseT transmitter, MB22 ceiling mount, wireless LAN unit

Speaker

10 W

Room type/application

Conference room, Large meeting room/auditorium, Meeting room/classroom, Projection mapping, Signage/retail, Visitor attraction

positioning

Ceiling mount, desktop

Color

White

Detailed information

Detailed information

Features

  • 5,200 lumens white/color brightness Razor-sharp and brilliant colors, even in bright rooms
  • WUXGA resolution Sharp images in Full HD for optimal readability
  • Future-proof connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
  • Easy and versatile installation Lightweight and compact device with large lens shift range
  • Ideal for social distancing requirements Scalable screen size up to 500 inches (12.7 m)
