Epson EB-810E Super Ultra Short Throw Laser Projector with 4KE, 5,000 lumens
Epson EB-810E Super Ultra Short Throw Laser Projector with 4KE, 5,000 lumens
Couldn't load pickup availability
SKU:EB-810E
Delivery time 1 - 3 days *1
Question about the product
Question about the product
Super ultra-short throw laser projector with 4KE
- Scalable 4KE projector for any room type. Ultra short throw projector with an image diagonal of 80–160 inches (2.03–4.06 m) for unobstructed views (no shadows/reflections).
- Bright and energy-efficient laser projector 5,000 lumens white/color brightness with 3LCD technology for particularly vibrant colors
- Convenient connectivity options: Automatic power on, wired/wireless use, USB 2A output for smart sticks
- Easy to use and durable Low maintenance and 5 years/12,000 hours warranty
- Convincing alternative to video/LED wall solutions Convincingly cost-effective with low energy consumption
- 4KE Super Ultra Short Throw Projector
- Scalable image – 80–160 inches (2.03–4.06 m)
- 5,000 lumens white/color brightness
- WLAN interface
The super ultra-short throw lens allows for secure, discreet positioning of the projector close to the projection surface, allowing presenters to present freely without casting shadows on the projection.
With 5,000 lumens of white/color brightness and 3LCD technology, the EB-810E delivers projections up to 160 inches (4.06 m) that are clearly visible from all angles and distances. The results are impressive and extremely easy to use.
Versatile wired and wireless connection options, including screen mirroring with Miracast™, enable effortless sharing of content from a variety of devices.
Weighing just 12.3 kg, the projector can be easily moved from room to room, and the Epson Setting Assistant app makes setup quick and easy. This model offers an ideal projection solution for a wide range of room sizes, combined with flexible installation options.
The EB-810E supports a variety of image formats and multi-projector edge blending technology for cost-effective, seamlessly integrated, energy-efficient, and ultra-wide projections, perfect for video conferencing.
Combined with Epson's Ambient Light Rejection screen, the EB-810E's image quality rivals that of a video wall or LED display. It's also cost-effective and consumes a fraction of the energy.
Specifications
Specifications
Technology
Projection system
3LCD technology, RGB liquid crystal shutter
LCD panel
0.62 inch with C2 Fine
Color brightness
5,000 lumens - 3,500 lumens (in economy mode) according to IDMS15.4
White brightness
5,000 lumens - 3,500 lumens (in economy mode) In accordance with ISO 21118:2020
resolution
1080p
High Definition
4K amplification
Image format
16:9
Contrast ratio
Over 5,000,000 : 1
light source
Laser
light source
20,000 hours Durability High, 30,000 hours Durability Eco
Video editing
10 bits
Vertical 2D refresh rate
192 Hz - 240 Hz
HDR support
HDR10, HLG
optics
projection ratio
0.16 - 0.40:1
zoom
Digital, Factor: 1 - 1.35
lens
Optical
Projection screen
80 inches - 160 inches
Projection lens F
1.8
focal length
2.3 mm
focus
Manually
Offset
7 : 1
Connectivity

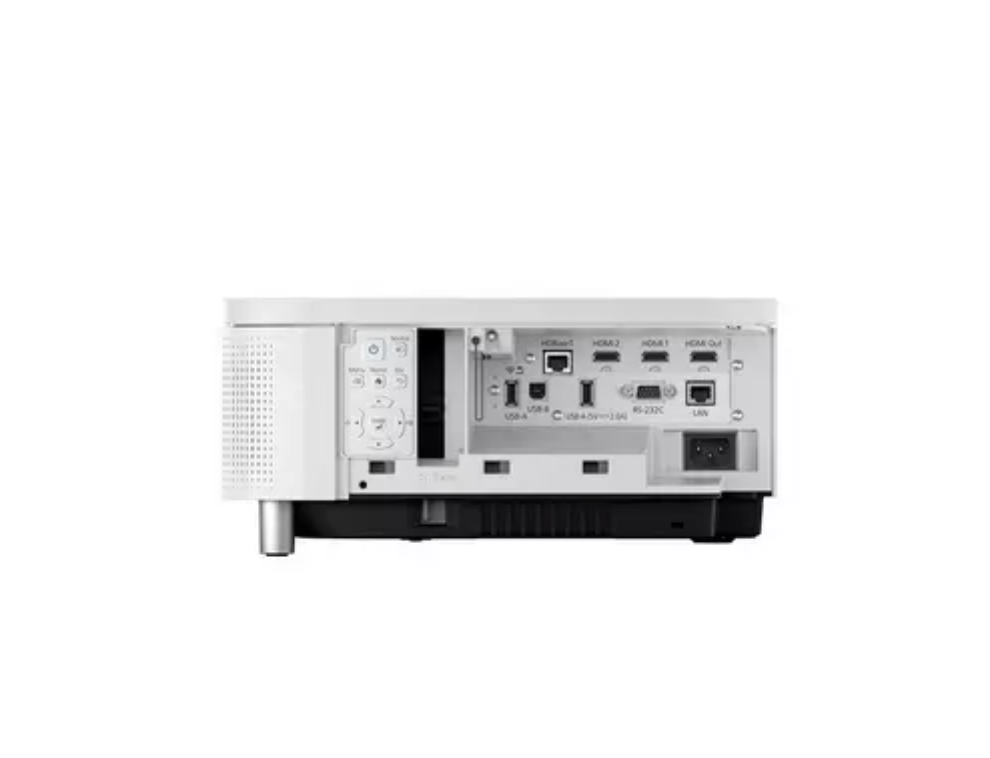

Connections
USB 2.0-A (2x), USB 2.0 Type B (service only), RS-232C, Ethernet interface (100 Base-TX/10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI input (2x), HDMI output, HDBaseT, Miracast
Smartphone connection
Ad-hoc/Infrastructure
Network protocol
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Advanced features
Security
Kensington lock, control panel lock, password protection, padlock, wireless LAN lock, wireless LAN security, password protection
3D
No
2D color modes
Dynamic, Natural, Cinema, Presentation, Blackboard, DICOM SIM
Features
21:9 aspect ratio support, 4K gain, A/V mute, Point & Arc correction, Auto power on, Auto input source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain multi-projection, Digital zoom, Instant power on/off, Document camera compatible, Edge blending technology, Email notification, Screen Fit, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG viewer, Long life light source, PC-free, Point correction, Power on button, Quick Corner, Schedule function, Screen mirroring, Source function, Split screen function, Ultra wide display (16:6), Web control, Web remote control, Wireless LAN capable, iProjection app
Interactivity
No
Color modes
Blackboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection
Projector control
via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption
290 W (Normal On-Mode), 192 W (Eco On-Mode), 380 W (Normal Peak mode), 286 W (Eco Peak mode), 0.4 W (Energy saving standby)
Heat dissipation
1,292 BTU/hour (max)
Operating voltage
AC 100V - 240V, 50Hz - 60Hz
Dimensions
695 x 341 x 156 mm (width x depth x height)
Weight
12.5 kg
Noise level
Standard mode: 35 dB(A) - Economy mode: 26 dB(A)
temperature
Storage -10°C - 60°C
humidity
Operating 20% - 80%, Storage 10% - 90%If the projector is installed using a ceiling or wall mount in a heavily oily atmosphere, or in locations where oils and chemicals are evaporated, or where aromatic oils are regularly burned, these substances may attack certain materials in our products, causing them to weaken over time and possibly causing the projector to fall from its mount.If you need further information about the environments in question, or if you have any other questions, please contact our service department, who will be happy to assist you.
Included software
Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Setting Assistant
Accesories
Air filter, Ceiling mount, Connection and control unit, MB22 ceiling mount, Safety wire set, Visualiser camera, WP System - ELPWP10, WP System - ELPWP20, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Room type/application
4K Streaming, Conference Room, Focus Room/Portable, Large Meeting Room/Auditorium, Meeting Room/Classroom, Signage/Retail, Visitor Attraction
positioning
Ceiling mount, desktop, TV cabinet, wall mount
Color
White
