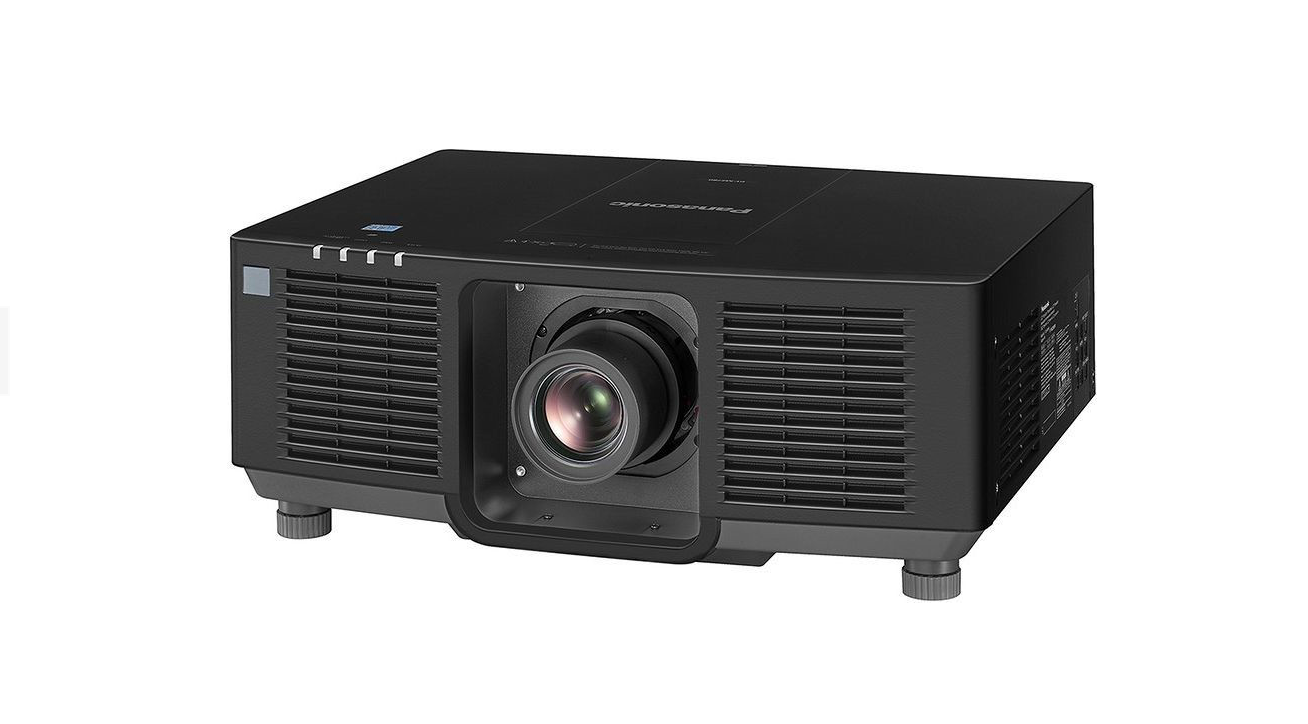

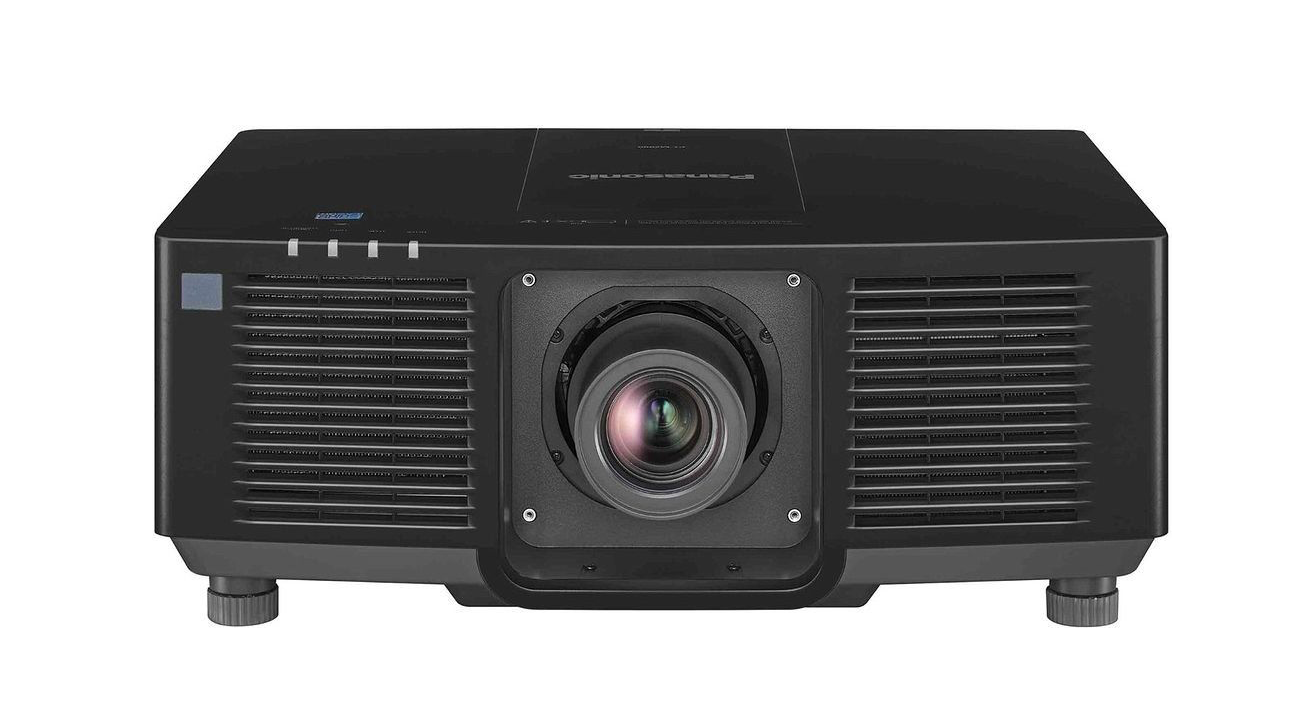

Projector type LCD projectors

Panel Size 19.3 mm (0.76 in) diagonal (16:10 aspect ratio)

Display Method Transparent LCD panel (x 3, R/G/B)

LCD Panel

Drive Method Active matrix

Pixels 2,304,000 (1920 x 1200) pixels x 3

Light Source Laser diodes

Light output 1, 2 7,500 lm

Time until light output declines to 50

%3

20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)

Auflösung WUXGA (1920 x 1200 pixels)

Contrast ratio 2 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC

CONTRAST] is set to [1] or [2]. HDMI™ signal input)

Lens Powered zoom (throw ratio 1.61–2.76:1), powered focus F = 1.7–2.3, f = 26.8–45.5 mm (for

supplied lens; optional lenses also available)

Screen Size (Diagonal) 1.02–10.16 m (40–400 in), 1.52–10.16 m (60–400 in) with the ET-ELW22, 2.54–10.16 m

(100–400 in) with the ET-ELU20, 16:10 aspect ratio

Center-to-corner zone ratio2 85 %

Lens shift Vertical (From the origin

point of the lens mounter)

±67 % (powered), ±60 % (with ET-ELW22), ±50 % (with ET-ELU20) (TBD)

Keystone Correction Range Vertical: ±25 ° (±22 ° with ET-ELW21/ET-ELW22); (±25 ° with ET-ELW20/ET-ELT22/ET-ELT23);

(±5 ° with ET-ELU20), Horizontal: ±30 ° (±15 ° with ET-ELW21/ET-ELW22); (±30 ° with ET-

ELW20/ET-ELT22/ET-ELT23); (0 ° with ET-ELU20)

Installation Ceiling/floor , front/rear , free 360-degree installation

Lens shift Horizontal (From the origin

point of the lens mounter)

±35 % (powered), ±30 % (with ET-ELW22), ±24 % (with ET-ELU20) (TBD)

Audio In M3 stereo mini-jack x 1

Monitor Out D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

Remote 1 In M3 stereo mini-jack x 1 for wired remote control

Remote 2 In D-sub 9-pin (female) x 1 for external control (parallel)

Terminals

Computer In D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)

MULTI SYNC OUT D-sub 9-pin (male) x 1 for link control

HDMI™ IN HDMI™ x 3 (Deep Color , compatible with HDCP 2.3, 4K/60p signal input4), CEC supported

SERIAL/MULTI SYNC IN D-sub 9-pin (female) x 1 for external control/link control (RS-232C compliant)

LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class

2], Art-Net)

DC Out USB Type A x 1 (for power supply, DC 5 V, 2 A)

Audio Out M3 stereo mini-jack x 1

DIGITAL LINK/LAN RJ-45 x 1 for network and DIGIT AL LINK connection (video/network/serial control)

(HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.3,

Deep Color , 4K/60p4, 5 signal input)

Power Supply AC 100–240 V, 50 Hz/60 Hz

NORMAL 385 W (AC 100–120 V), 365 W (AC 200–240 V) (TBD)

ECO 280 W (AC 100–120 V), 270 W (AC 200–240 V) (TBD)

QUIET 275 W (AC 100–120 V), 265 W (AC 200–240 V) (TBD)

Maximum power consumption 6 428 W (4.7–2.3 A) (450 VA) (Power consumption is 408 W at AC 200–240 V) (TBD)

On-mode power consumption

(Operating mode) 6

Abmessung (B x H x T) 561 x 224 x 439 mm (22 3/32˝

x 8 13/16˝

x 17 9/32˝ ) (With legs at shortest position,

including lens and protruding parts)

Operating Environment Operating temperature: 0–45 °C (32–113 °F)8, operating humidity: 10–80 % (no

condensation)

Cabinet Materials Molded plastic

Applicable Software Logo Transfer Software, Multi Monitoring & Control Software, Smart Projector Control for

iOS/Android™

, Geometry Manager Pro 9

Filter Included (Estimated maintenance time: approx. 20,000 hours)

Operation noise 2 33 dB (NORMAL/ECO), 27 dB (QUIET) (TBD)

Weight 7 Approx. 18.6 kg (41.0 lbs) (with supplied lens)
